Unlocking More Motion in Less Space: The Power of VidoAir™ Multi-Stage Pneumatic Cylinders
When Space Is Limited, Multi-Stage Pneumatic Cylinders Are The Solution
Modern automation is pushing equipment design to its limits. Machines are becoming more compact, production lines more dense, and performance expectations higher than ever.
But there’s a persistent challenge engineers face across industries:
How do you achieve long, precise motion when you don’t have the physical space for a traditional cylinder?
That’s exactly where multi-stage pneumatic cylinders come in—and where VidoAir is delivering real-world solutions.
What Are Multi-Stage Pneumatic Cylinders?
Multi-stage pneumatic cylinders (also known as a telescoping cylinder) are designed with multiple nested stages inside a single barrel, allowing it to extend much farther than a standard single-stage actuator—without increasing its installed footprint.
Instead of one linear stroke, the cylinder extends in sequential stages, delivering:
- Significantly longer stroke length
- Compact retracted size
- Controlled, stable motion
This design makes multi-stage cylinders ideal for applications where space constraints and performance demands collide.

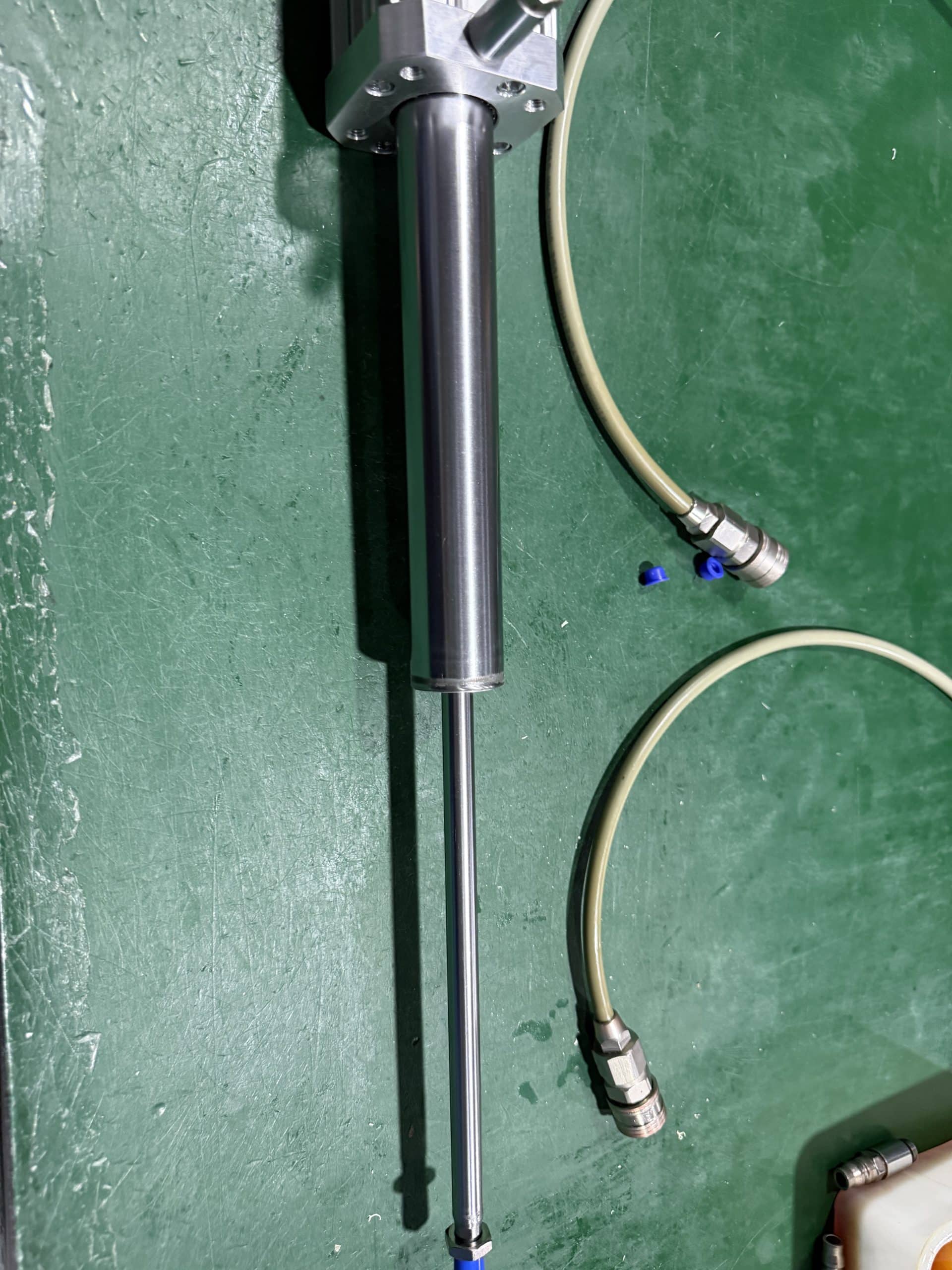

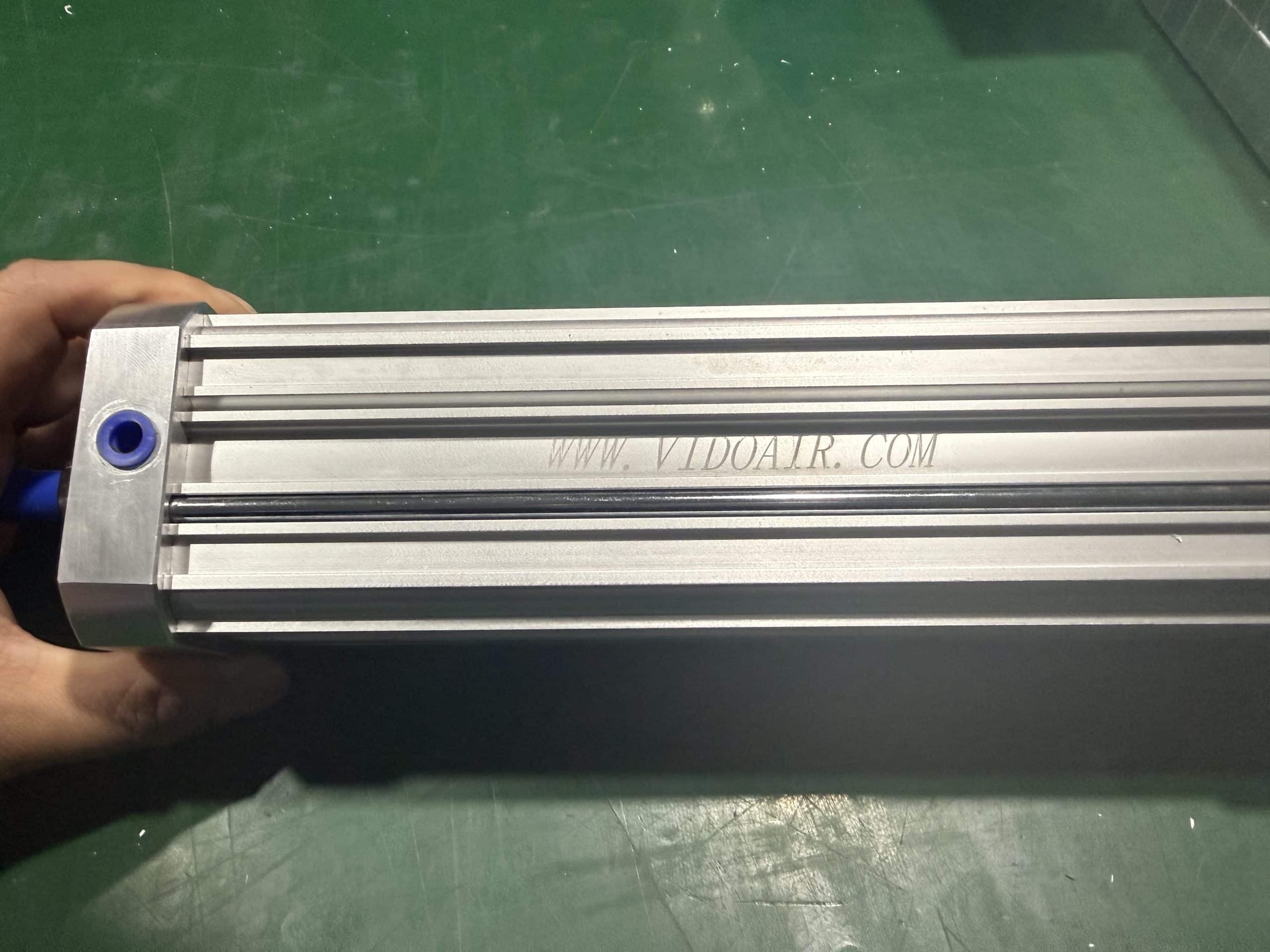

The VidoAir™ Multi-Stage Advantage
VidoAir™ multi-stage pneumatic cylinders are more than just a component— they are a purpose-built engineering solution.
Designed for a specific customer application, it demonstrates VidoAir’s ability to go beyond catalog parts and deliver custom pneumatic systems tailored to real-world constraints.
Key Benefits
1. Maximum Stroke in Minimal Space
Multi-stage construction enables extended reach without requiring additional installation space—perfect for compact machinery and tight automation cells.
2. Precision and Stability
Each stage is engineered for controlled extension, ensuring smooth, repeatable motion even in demanding environments.
3. Custom-Built for the Application
Unlike off-the-shelf cylinders, VidoAir™ designs each unit to match exact requirements—stroke length, mounting configuration, force, and operating conditions.
4. Seamless Integration
Engineered to integrate into existing systems, reducing redesign time and accelerating deployment.
As manufacturing continues to evolve with automation, AI, and Industry 4.0 technologies, one foundational category remains critical: actuation. From moving products along conveyor lines to enabling precision pressing operations, actuators are the backbone of motion in modern industry and multi-stge pneumatic cylinders enable motion in spaces where condtions are tight.
Where Multi-Stage Cylinders Make the Biggest Impact
These cmulti-stage pneumatic cylinders are not niche—they’re becoming essential in modern automation environments where efficiency per square inch matters.
Common Applications
- Robotic end-of-arm tooling (EOAT)
- Pick-and-place systems in confined spaces
- Packaging and material handling equipment
- Automated assembly lines
- Vertical lifting in compact enclosures
In each case, the goal is the same:
➡️ Deliver more motion without increasing machine size
Why Standard Cylinders Fall Short
Traditional single-stage pneumatic cylinders are reliable—but they come with limitations:
- Long stroke = long retracted length
- Increased footprint
- Reduced design flexibility
As machines become more compact and modular, these limitations become bottlenecks.
Multi-stage cylinders eliminate that trade-off.
Engineering Beyond the Catalog
At VidoAir™, the focus isn’t just on supplying components—it’s on solving engineering challenges.
Their approach combines:
- Custom OEM manufacturing
- Application-specific design support
- Factory-direct delivery for faster turnaround
- High-quality materials for durability and performance
This allows customers to move from constraint to capability—without compromise.
Built for the Future of Automation
As manufacturing continues to evolve toward:
- Higher density production lines
- Smarter, modular equipment
- Faster cycle times
- Greater flexibility
…the demand for compact, high-performance actuation will only increase.
Multi-stage pneumatic cylinders aren’t just a workaround—they’re a design enabler.
The VidoAir™ multi-stage pneumatic cylinders are a clear example of what modern pneumatic engineering should deliver:
✔ Compact form factor
✔ Extended motion capability
✔ Precision performance
✔ Custom-built flexibility
When your application demands more than standard solutions can provide, the answer isn’t compromise—it’s better engineering.
📞 Ready to Solve Your Space‑Constraint Challenge?
If your application requires custom pneumatic cylinders, multi‑stage actuators, or any type of non‑standard pneumatic solution, our engineering team is ready to help.
Want help selecting the right pneumatic solution? Contact VidoAir to learn more about our industrial automation components.
Get a Free, No‑Obligation Engineering Evaluation
We’ll review your requirements, analyze your constraints, and recommend the optimal pneumatic solution — whether it’s a modified standard component or a fully custom design.
👉 Call us at 1‑502‑228‑8881 👉 Or submit your specs through our contact form
