Industrial‑Grade Pneumatic Tubing
Engineered for Automation, Robotics & High‑Performance Machinery
VidoAir™ delivers a complete line of engineering‑grade pneumatic tubing designed for modern automation environments — from high‑speed pick‑and‑place systems to harsh‑duty welding cells. Our portfolio includes PU, PA, PE, PTFE, spiral coils, multi‑row bonded tubes, and UL94 V‑0 flame‑retardant double‑layer tubing, all manufactured to strict quality standards and available in custom colors, sizes, and lengths.
Our tubing is engineered for air, water, vacuum, and oil‑compatible pneumatic systems, with operating temperatures ranging from –40°C to +120°C depending on material type (PU, PA, PE, PTFE).
Whether you’re designing a new system or upgrading an existing line, VidoAir™ pneumatic tubing delivers the reliability and dimensional consistency required for confident specification.
Complete Pneumatic Tubing Portfolio
Polyurethane (PU)

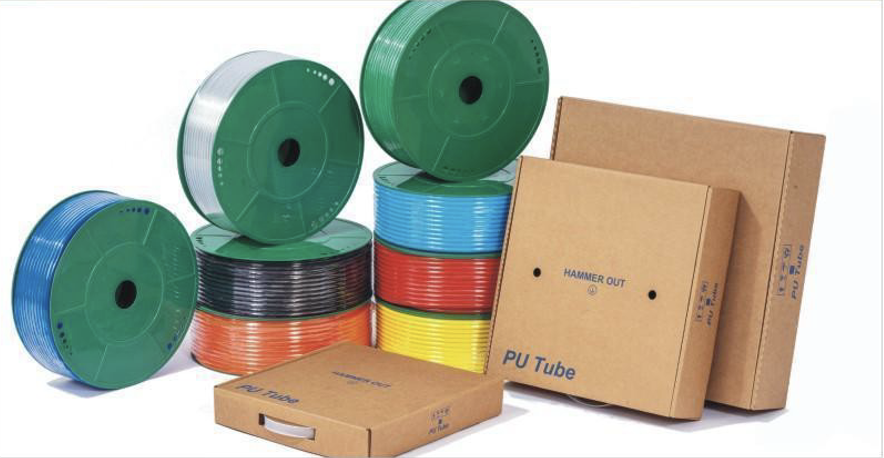

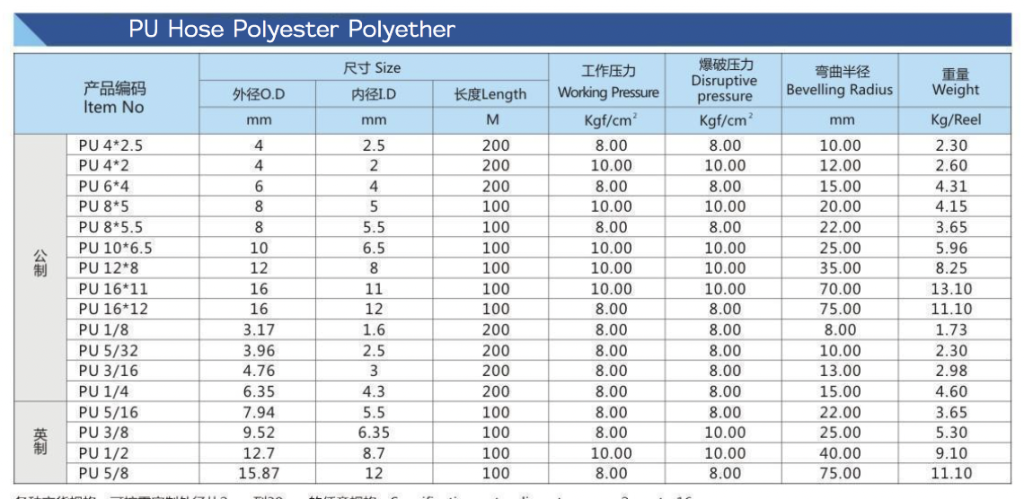

Polyurethane (PU) Tubing – Flexible, Durable, High‑Performance
Our PU pneumatic tubing offers excellent flexibility, kink resistance, and abrasion durability — ideal for robotics, motion automation, and dynamic machinery.
Key Specifications:
Material: Polyurethane
Fluids: Air, water
Operating Temp: –20°C to +60°C
Available Sizes:
OD from 4 mm to 16 mm and fractional sizes from 1/8″ to 5/8″
Applications:
Pick‑and‑place automation
Packaging machinery
Pneumatic actuators
Robotics and cobots
Nylon (PA)

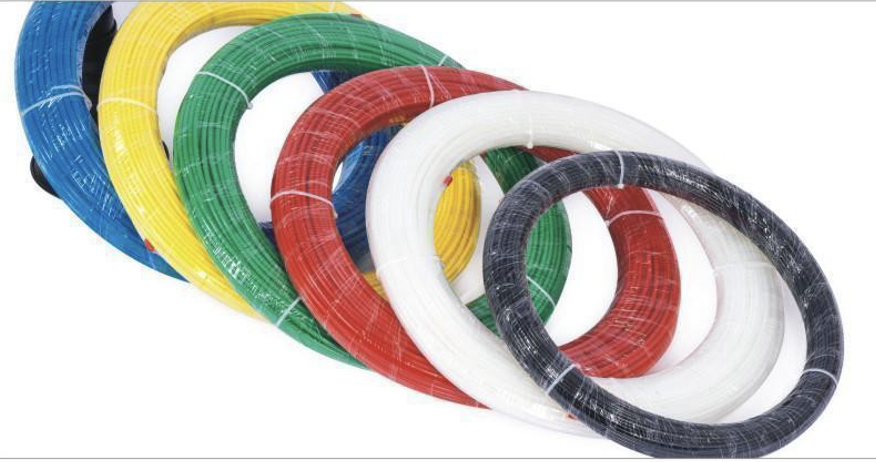

Nylon (PA) Tubing – High Pressure, High Temperature
PA pneumatic tubing is engineered for demanding pneumatic and oil‑based systems requiring higher pressure and temperature resistance.
Key Specifications:
- Material: Nylon
- Fluids: Air, water
- Operating Temp: –35°C to +120°C
- Pressure Ratings: Up to 30 Kgf/cm² working pressure and 75 Kgf/cm² burst pressure depending on size
Applications:
- High‑pressure pneumatic circuits
- Oil‑resistant systems
- Automotive and industrial machinery
- Air brake and lubrication line
Polyethylene (PE)

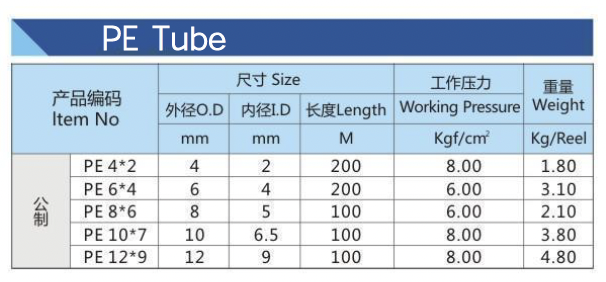

Polyethylene (PE) Tubing — Lightweight, Economical, Chemical‑Resistant
PE pneumatic tubing is ideal for low‑pressure pneumatic systems, fluid transfer, and general industrial use.
Key Specs:
- Material: PE / HDPE
- Fluids: Air, water
- Operating Temp: –20°C to +60°C
Applications:
- Air lines
- Water transfer
- Chemical‑resistant pneumatic systems
- Food & beverage equipment (non‑contact)
Teflon (PTFE)
Teflon (PTFE) Tubing — Extreme Temperature & Chemical Resistance
PTFE tubing is engineered for harsh environments requiring maximum chemical resistance and high‑temperature stability.
Key Specs:
-
Material: Teflon
-
Fluids: Air, water
-
Operating Temp: –40°C to +120°C
Applications:
-
High‑temperature pneumatic systems
-
Chemical processing
-
Semiconductor equipment
-
Harsh‑duty industrial automation
Flame‑Retardant PU
Double‑Layer Flame‑Retardant PU Tubing — UL94 V‑0 Performance
Designed for welding cells, EV battery assembly, robotics, and electrical cabinets, this tubing provides superior flame resistance and safety.
Key Specs:
- Material: Polyurethane (double‑layer)
- Operating Temp: –20°C to +80°C
- Working Pressure: Up to 10 Kgf/cm²
Applications:
- Welding automation
- High‑heat industrial environments
- EV battery production
- Electrical cabinet pneumatics

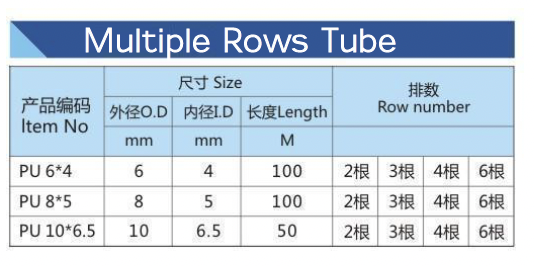

Multi‑Row Bonded

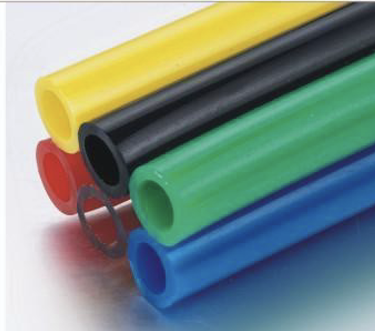

Multi‑Row Bonded Tubing — Clean Routing, Zero Tangling
Perfect for compact machinery and organized pneumatic routing.
Available in: 2‑row, 3‑row, 4‑row, and 6‑row configurations
Applications:
-
Multi‑axis automation
-
Robotics
-
Packaging machinery
-
Clean pneumatic routing
Spiral Coiled Tubing
Spiral Coiled Tubing — Retractable, Space‑Saving
Ideal for handheld tools, workstations, and dynamic movement.
Available Sizes: 4×2.5 mm up to 16×12 mm, lengths from 3 m to 15 m
Customization Options
VidoAir™ offers full OEM customization:
- Custom colors (blue, black, orange, transparent, white, and more)
- Custom lengths
- Custom OD/ID combinations (2 mm to 30 mm)
- Private labeling
- Multi‑row bonding
- Spiral coil fabrication
Specification: outer diameter range 2 mm to 30 mm… various colors and lengths can be processed.
Why Engineers Choose VidoAir™
- High‑precision manufacturing
- Consistent OD/ID tolerances
- High pressure and temperature stability
- Flame‑retardant options for safety‑critical automation
- Fast lead times
- OEM customization
- Global quality certifications
Whether you’re designing a new system or upgrading an existing line, VidoAir™ pneumatic tubing delivers the reliability and dimensional consistency required for confident specification.
PNEUMATIC TUBING CATALOG

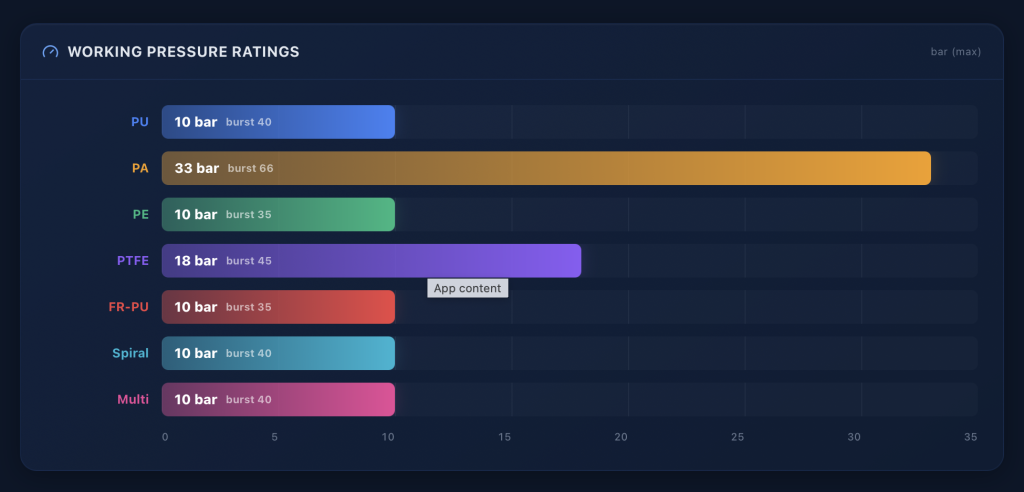

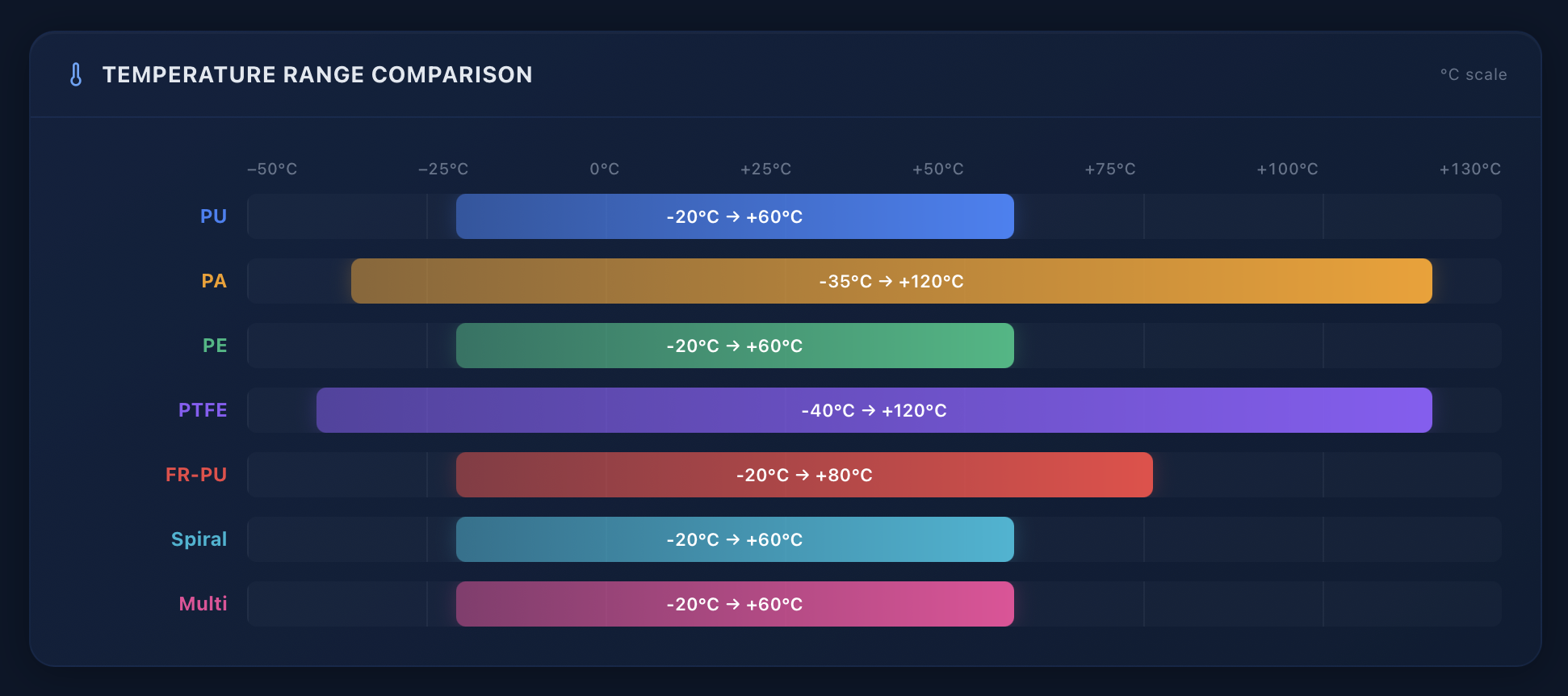

TUBING COMPARISON CHART
TUBING FACTORY VIDEO
SEE HOW ITS MADE!
Why Engineers Specify VidoAir™
- Dimensional consistency across product families
- High cycle life validated through real‑world testing
- Fast customization without long engineering lead times
- Application‑driven design support from pneumatic specialists
- Full system compatibility with VidoAir valves, air prep, fittings, and tubing
When you specify VidoAir™ pneumatic actuator cylinders you’re choosing components engineered to reduce downtime, simplify integration, and deliver predictable performance across millions of cycles.
We pride ourselves on delivering complete, high-quality pneumatic solutions tailored to your needs. All of our products are engineered for durability, efficiency, and ease of use, ensuring your operations run smoothly. Whether you’re upgrading an existing system or building a new one, VidoAir’s pneumatic componetns are designed to deliver top performance.
Best PracticesTo maximize the performance and lifespan of your pneumatic systems, regualr maintenance is critical. For more on maintaining pneumatic systems, visit Compressed Air Best Practices, a leading resource for compressed air system optimization.
