TUBING PRODUCTS GALLERY

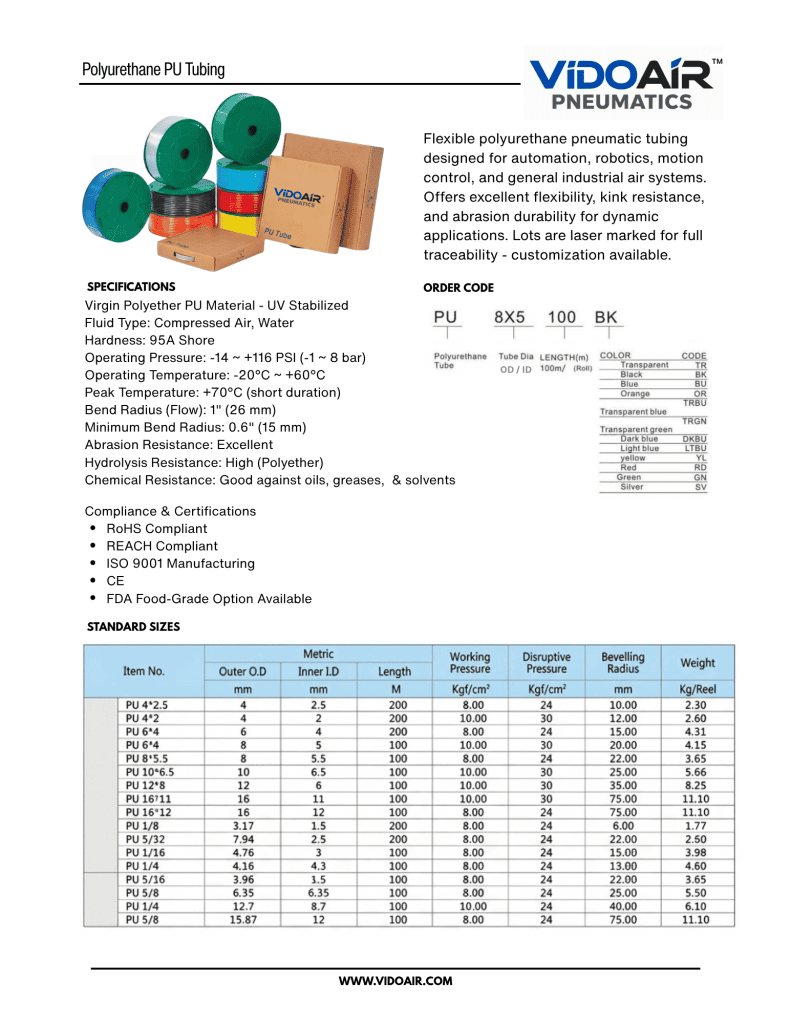

PU POLYESTER TUBING
PU POLYESTER TUBING
SPECS:
- Material: Polyurethane (PU)
- Operating Temperature: -35°C ~ 60°C
- Operating Pressure: -14 ~ 116 PSI (-1 ~ 8bar)
- Bend Radius: (Flow) 1.024″ (26.00mm)
- Minimum Bend Radius: 0.591″ (15.00mm)
- Packaging: Continuous Spool
- Colors: Blue, White, Black, Yellow, Green, Clear
—————————-
ONE, ALL-IN, DELIVERED PRICE
LEAD-TIME: 20 DAYS – MOQ: 1 SPOOL
CONTACT US FOR QUANTITY PRICING AND OTHER CONFIGURATIONS OR COLORS
Cross for SMC TU, PARKER 1025U1006, and Festo PUN-H

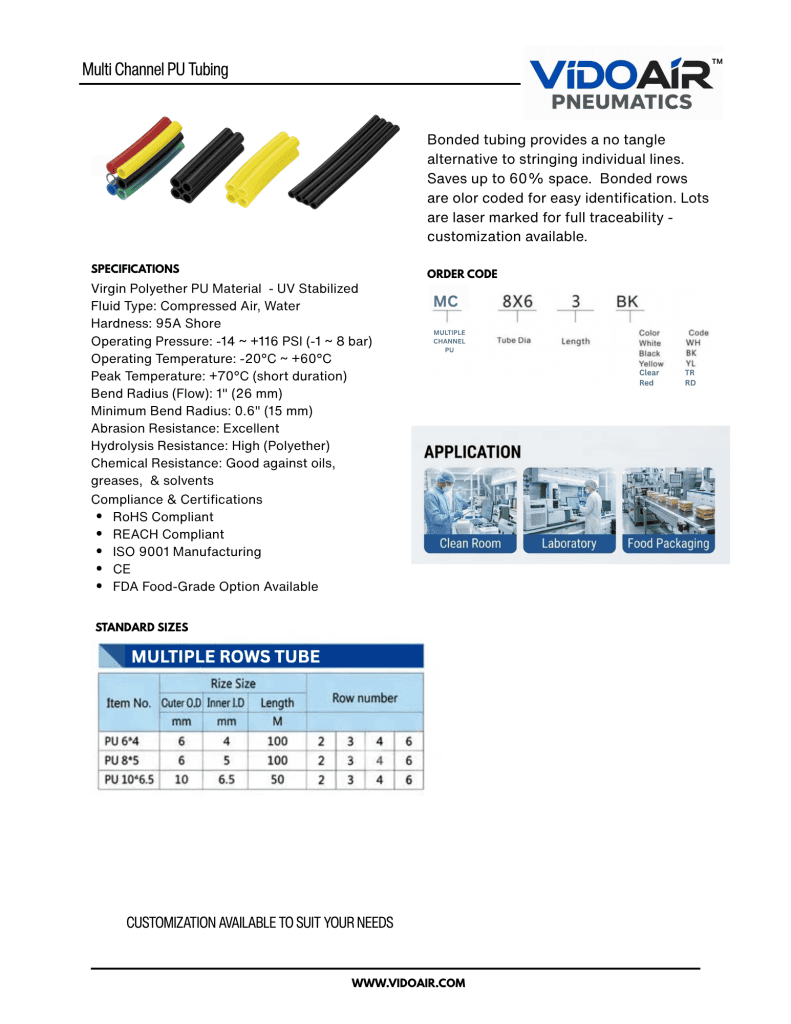

MULTI-ROW TUBING
MULTIPLE ROWS PU TUBING
SPECS:
- Material Polyurethane (PU)
- Operating Pressure -14 ~ 116PSI (-1 ~ 8bar)
- Packaging: Continuous Spool
- Operating Temperature -20°C ~ 60°C
- Tubing Bend Radius: (Flow) 1.024″ (26.00mm)
- Minimum Bend Radius” 0.591″ (15.00mm)
—————————-
ONE, ALL-IN, DELIVERED PRICE
LEAD-TIME: 20 DAYS – MOQ: 1 SPOOL
CONTACT US FOR QUANTITY PRICING AND OTHER CONFIGURATIONS
Cross for SMC TUS, PARKER 142OU, and Festo PUN-H-DUO

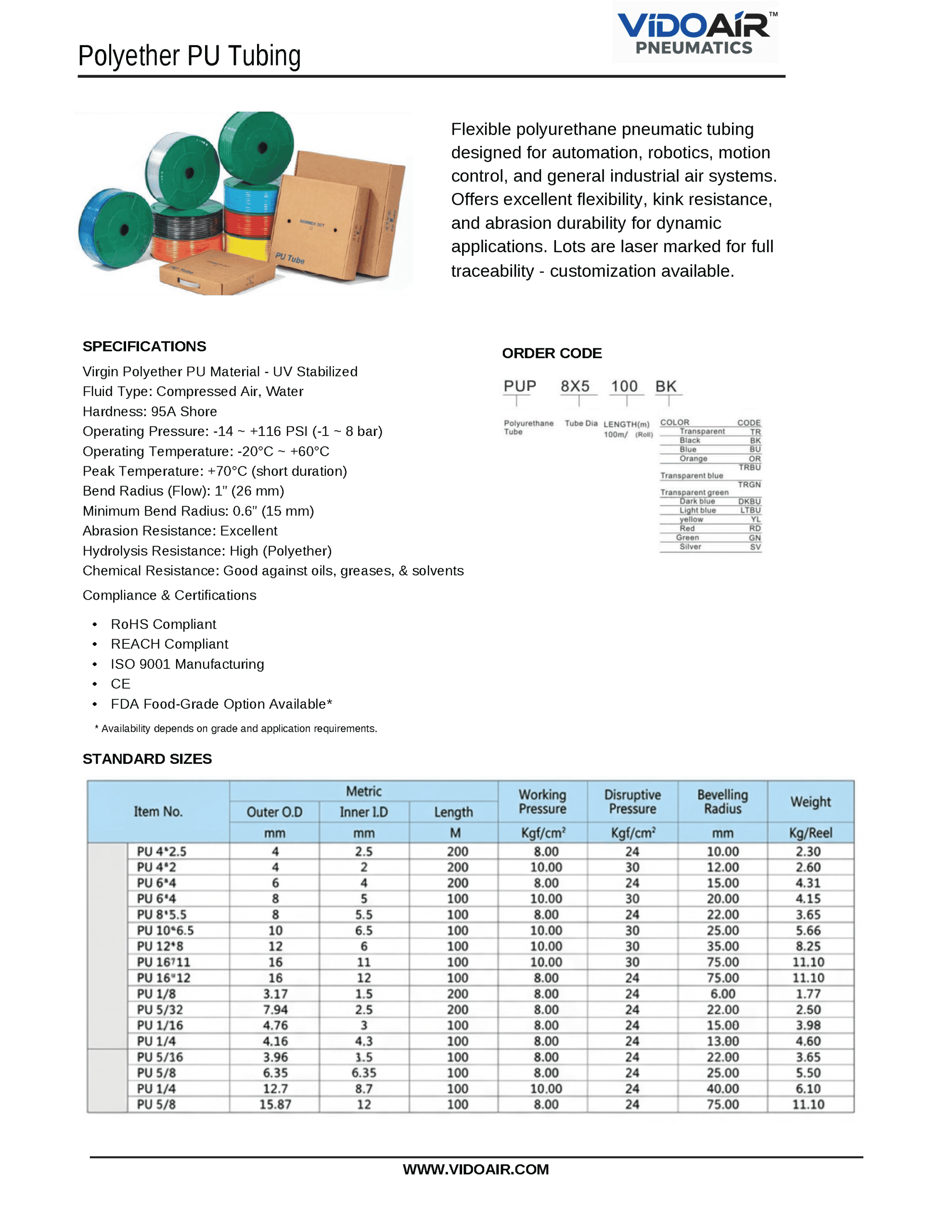

PU POLYETHER TUBING
PU POLYETHER TUBING
SPECS:
- Material: Polyurethane (PU)
- Outer Diameter 0.25″ (6.35mm)
- Packaging: Continuous Spool
- Operating Temperature: -20°C ~ 60°C
- Operating Pressure: -14 ~ 116PSI (-1 ~ 8bar)
- Bend Radius: (Flow) 1.024″ (26.00mm)
- Minimum Bend Radius: 0.591″ (15.00mm)
- Colors: Blue, White, Black, Yellow
—————————-
ONE, ALL-IN, DELIVERED PRICE
LEAD-TIME: 20 DAYS – MOQ: 1 SPOOL
CONTACT US FOR QUANTITY PRICING AND OTHER CONFIGURATIONS OR COLORS
Cross for SMC TU, PARKER 1025U1006, and Festo PUN-H

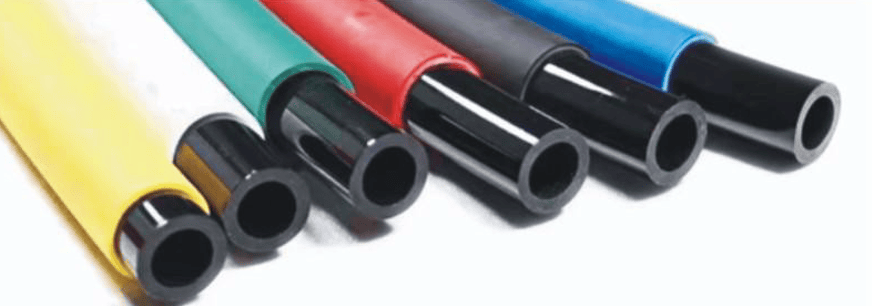

FLAME RETARDANT TUBING
FLAME RETARDANT TUBING
SPECS:
- Material: Polyether PU with added halogen free flame retardant additives
- Rating: UL94 VO flame retardant rating
- Operating Temperature: –20°C to +80°C
- Working pressure: 0.8–1.5 MPa depending on OD
- Burst pressure: 3× working pressure typical
- Colors: Blue, White, Black, Yellow, Green, Red
—————————-
ONE, ALL-IN, DELIVERED PRICE
LEAD-TIME: 20 DAYS – MOQ: 1 SPOOL
CONTACT US FOR QUANTITY PRICING AND OTHER CONFIGURATIONS OR COLORS
Cross for SMC, PARKER, and Festo

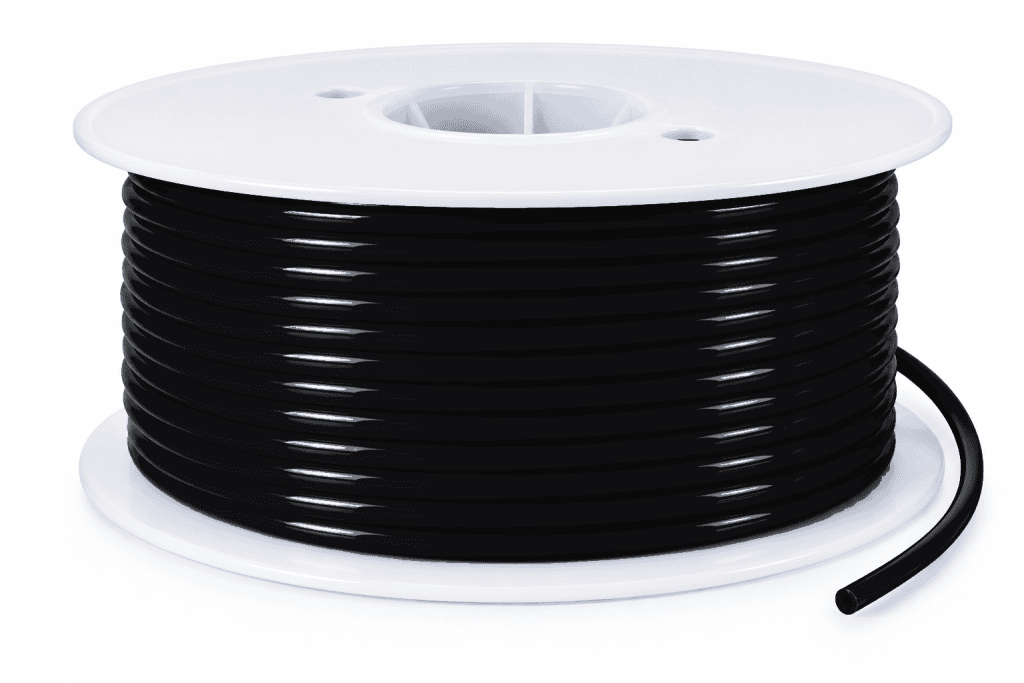

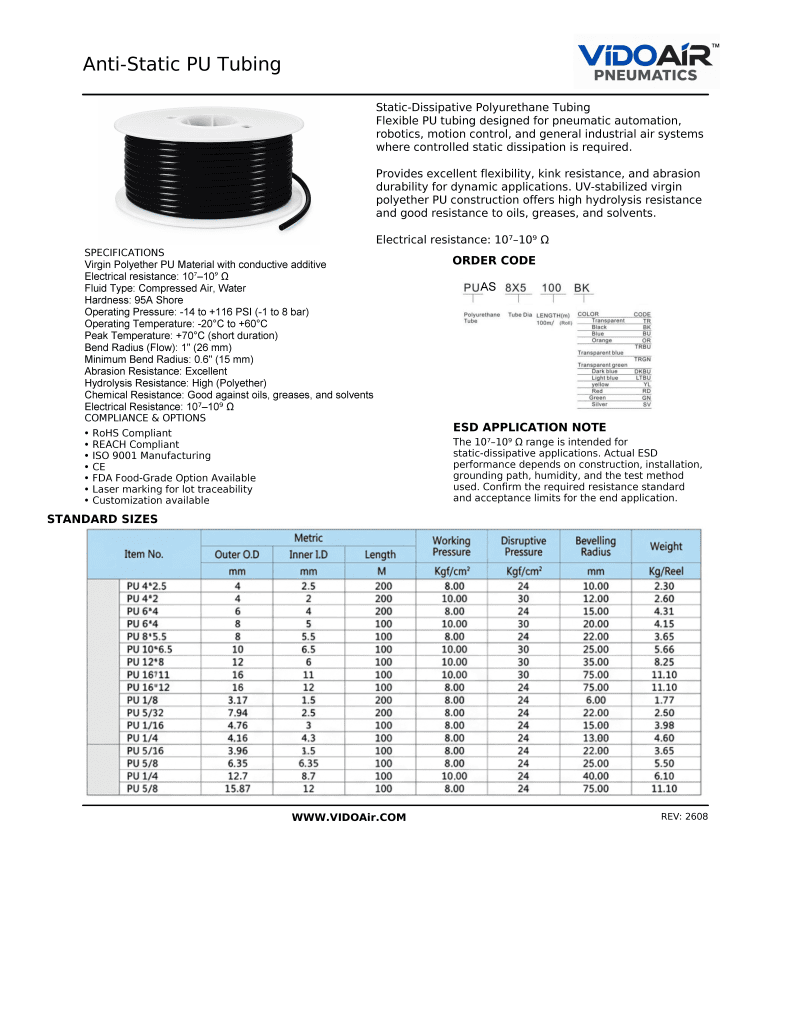

ANTI-STATIC Static Dissipative (SD) PU TUBING -
ANTI-STATIC (SD) PU TUBING
SPECS:
- Material Polyurethane (PU) with conductive additive
- Electrical resistance: 10⁷–10⁹ Ω
- Operating Pressure -14 ~ 116PSI (-1 ~ 8bar)
- Operating Temperature -20°C ~ 60°C
- Tubing Bend Radius: (Flow) 1.024″ (26.00mm)
- Minimum Bend Radius” 0.591″ (15.00mm)
- Packaging: Continuous Spool
- MM and Inch OD Available
—————————-
ONE, ALL-IN, DELIVERED PRICE
LEAD-TIME: 20 DAYS – MOQ: 1 SPOOL
CONTACT US FOR QUANTITY PRICING AND OTHER CONFIGURATIONS
Cross for SMC TUS, PARKER 142OU, and Festo PUN-H-DUO

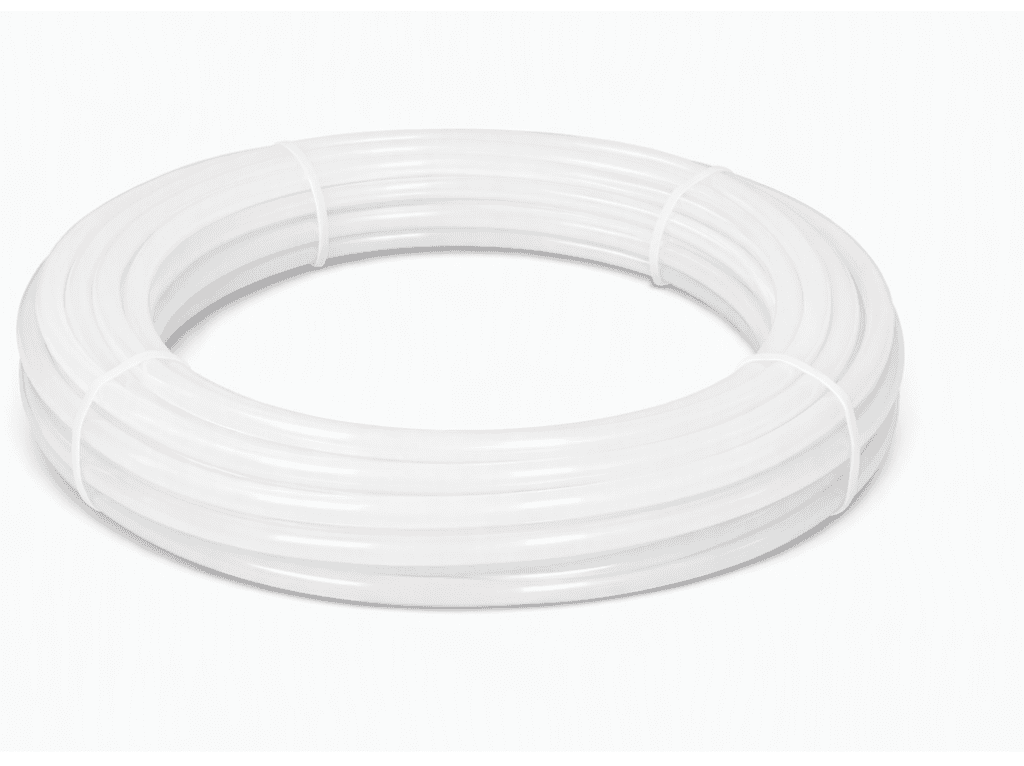

NYLON PA6 & PA12 TUBING
NYLON TUBING – PA6 &
PA12 SPECS:
- Material: Polyamide 12 (PA12)
- Operating temperature: approx. -40°C to 130°C (grade-dependent)
- Superior flexibility and long-term durability vs. PA6 due to low moisture uptake
- Excellent chemical resistance — compatible with oils, greases, paints, and diluted solvents
- Packaging: Continuos Spool
PA6 SPECS:
- Material: Polyamide 6 (PA6)
- Operating temperature: approx. -40°C to 105°C (grade-dependent)
- High tensile and bending strength; excellent abrasion and vibration resistance
- Compatible with standard push-to-connect and compression pneumatic fitting
—————————-
ONE, ALL-IN, DELIVERED PRICE
LEAD-TIME: 20 DAYS – MOQ: 1 SPOOL
CONTACT US FOR QUANTITY PRICING AND OTHER CONFIGURATIONS
Cross for SMC TUS, PARKER 142OU, and Festo PUN-H-DUO
