Precision Motion Control
The Future of Pneumatic Actuation
Introduction

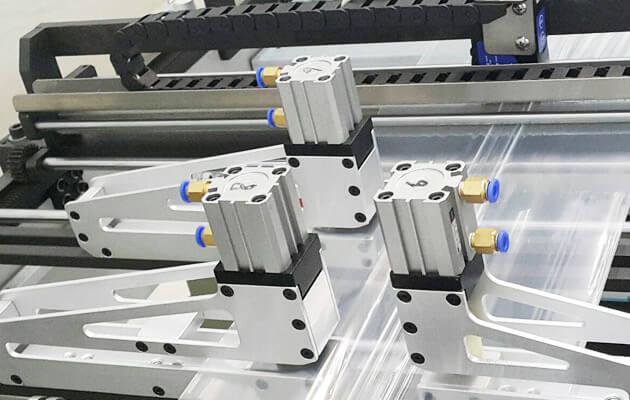

PRECISION CYLINDERS.
In high‑performance automation, precision isn’t optional — it’s the foundation. VidoAir™ Pneumatics delivers actuator cylinders designed for repeatability, reliability, and compact integration across robotics, assembly, and motion‑control systems.
Our latest generation of precision motion control cylinders combines dual‑acting reliability with hard‑chrome piston rods and double‑seal technology, ensuring zero leakage and long‑term durability even in demanding environments.
Industrial automation depends on one critical factor: repeatable motion.
Whether you’re building packaging equipment, robotic automation, assembly machinery, or material handling systems, your pneumatic cylinders directly affect machine accuracy, uptime, maintenance costs, and overall productivity.
Modern precision cylinders are engineered far beyond simply extending and retracting. Today’s designs minimize leakage, reduce friction, improve repeatability, and deliver millions of maintenance-free cycles.
Engineered for Accuracy
Unlike standard air cylinders, precision pneumatic cylinders are manufactured with tighter machining tolerances, premium sealing systems, and wear-resistant materials.
These improvements provide:
✔ Higher repeatability
✔ Longer service life
✔ Lower air consumption
✔ Improved positioning accuracy
✔ Reduced maintenance
✔ Consistent performance over millions of cycles
For OEM equipment manufacturers, even small improvements in repeatability can significantly improve overall machine performance.
Every VidoAir™ precision cylinder is built for ±0.01 mm repeatability, enabling consistent, smooth motion in automated production lines. The ultra‑compact, low‑profile design fits seamlessly into tight spaces, while the dual‑acting configuration ensures balanced performance under variable loads.
“The hidden cost of a cheap cylinder isn’t the purchase price—it’s the cumulative downtime, reject rate, and labor that follows.”

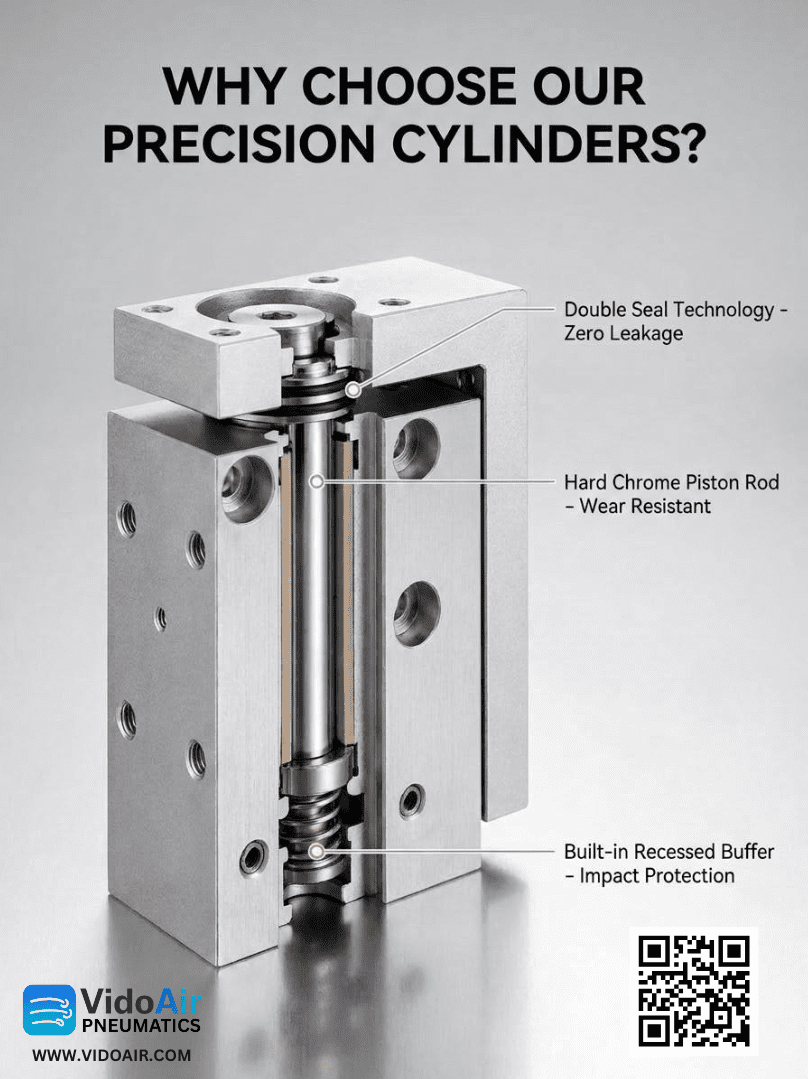

Key Features
Hard Chrome Piston Rod
The piston rod experiences constant motion during operation.
A hard chrome plated rod offers:
- Excellent wear resistance
- Reduced friction
- Corrosion resistance
- Longer bearing life
- Smooth operation
Repeatability Matters
A cylinder capable of ±0.01 mm repeatability allows engineers to confidently perform:
- Pick-and-place operations
- Precision assembly
- Electronic manufacturing
- Vision inspection
- Automated testing
- Packaging systems
Double Seal Technology
Zero leakage for clean, efficient operation.
Built-In Recessed Buffer
High-speed automation creates impact forces every cycle.
Integrated pneumatic cushioning helps:
- Reduce vibration
- Protect machine components
- Lower noise
- Extend equipment life
- Improve overall reliability
Ultra Compact Design
Machine builders are always trying to reduce machine footprint.
Compact cylinders provide:
- Smaller installations
- Lower moving mass
- Faster cycle times
- Easier integration
- More flexible machine layouts
ISO 9001 Certified & RoHS Compliant
Guaranteed quality and environmental responsibility
Applications Across Industries
VidoAir cylinders are trusted by automation engineers, OEMs, and system integrators across industries:
-
-
-

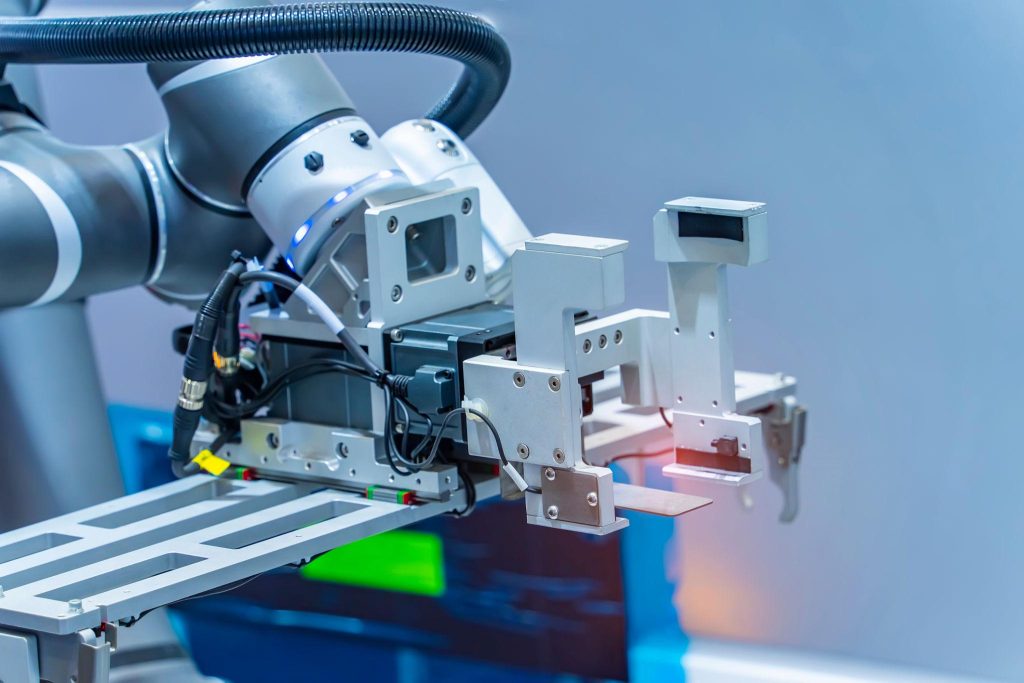

- Robotics & Automation: Compact actuators for EOAT and precision positioning
- Electronics & Semiconductor: Clean, leak‑free motion for delicate assembly
- Automotive Manufacturing: Reliable performance under high‑cycle conditions
- Medical & Food Processing: FDA‑compliant materials for hygienic environments
- Packaging Equipment: Carton forming, sealing, labeling, case packing
- Material Handling: Conveyor stops, product indexing, diverters, lift mechanisms
-
-

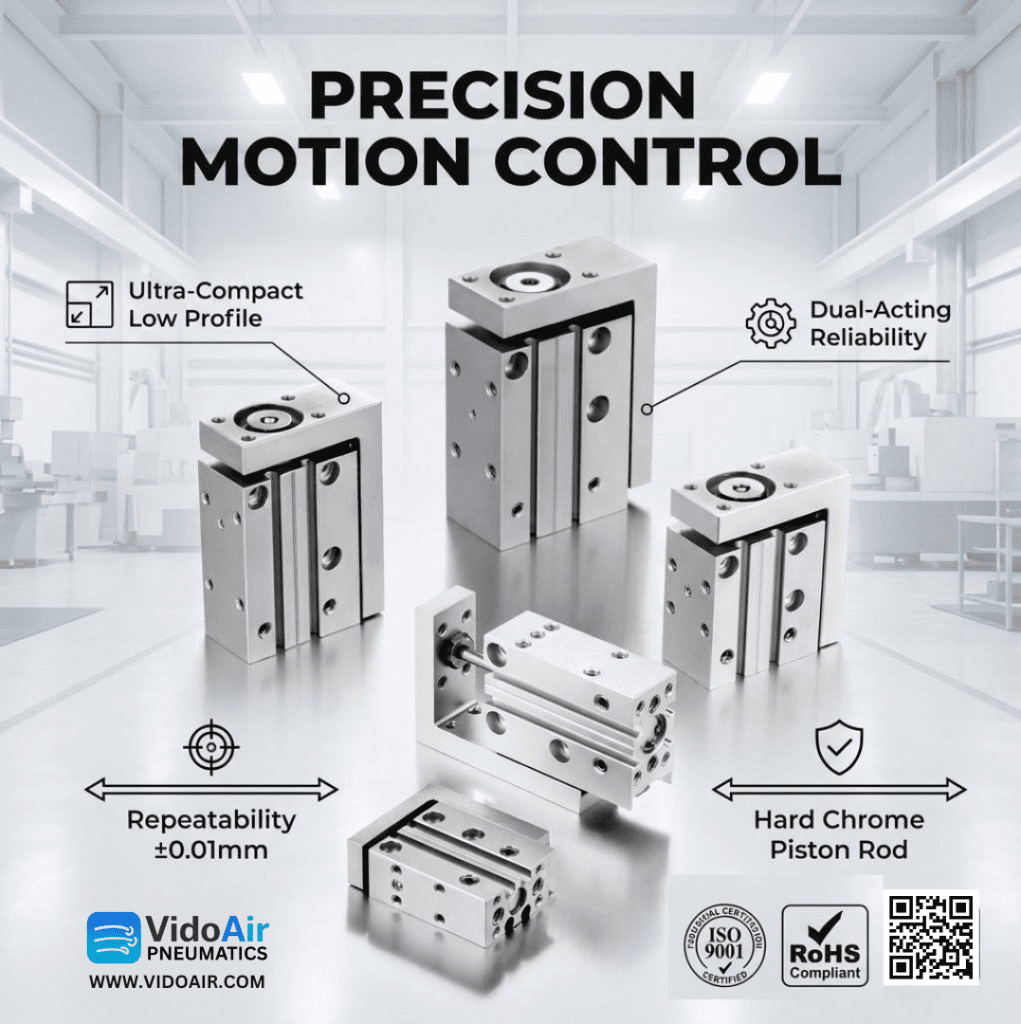

Precision Motion Control series — ultra-compact, dual-acting, ISO 9001 & RoHS certified. Available in multiple bore sizes to suit your application.
Selecting The Right Pneumatic Cylinder
Pneumatic cylinder selection comes down to four variables: bore size (force), stroke length, mounting style, and operating pressure. For precision-class applications, add a fifth: permissible side load on the rod. VidoAir’s product team can walk you through the calculation—but here’s a quick-start framework:
Force required: F (N) = Pressure (bar) × π/4 × Bore² (mm²) × 0.1. Account for friction (≈15% efficiency loss) and any vertical or off-axis loading.
Stroke: Add 5–10mm of safety margin to your nominal stroke to prevent end-of-stroke buffering from absorbing working travel.
Mounting: Clevis, flange, foot, and rod-eye mountings are available. For high-side-load applications, specify a guided rod or rod-lock variant.
When in doubt, the VidoAir team is available to co-engineer the solution.
Why Choose VidoAir™
Our engineering philosophy is simple: precision without compromise. From design to delivery, every component is tested for dimensional accuracy, seal integrity, and performance consistency.
VidoAir™ precision pneumatic cylinders are engineered specifically for demanding automation applications.
Key advantages include:
- Precision-machined aluminum bodies
- Double-seal technology
- Hard chrome piston rods
- Compact, lightweight construction
- High repeatability
- Long service life
- Factory-direct pricing
- Custom configurations available
Combined with VidoAir valves, fittings, tubing, PLC controls, and air preparation products, these cylinders provide a complete motion control solution
Whether you’re upgrading an existing automation cell or designing a new robotic system, VidoAir cylinders provide the motion control foundation you can trust.
Visit our full actuator product line at 👉 VidoAir Pneumatic Actuator Cylinders
Explore the complete line of Precision Pneumatic Cylinders or request a custom solution from our engineering team.
Ready to Improve Your Machine Performance?
Whether you’re designing new automation equipment or upgrading existing machinery, VidoAir precision pneumatic cylinders deliver the repeatability, reliability, and long service life engineers demand.
