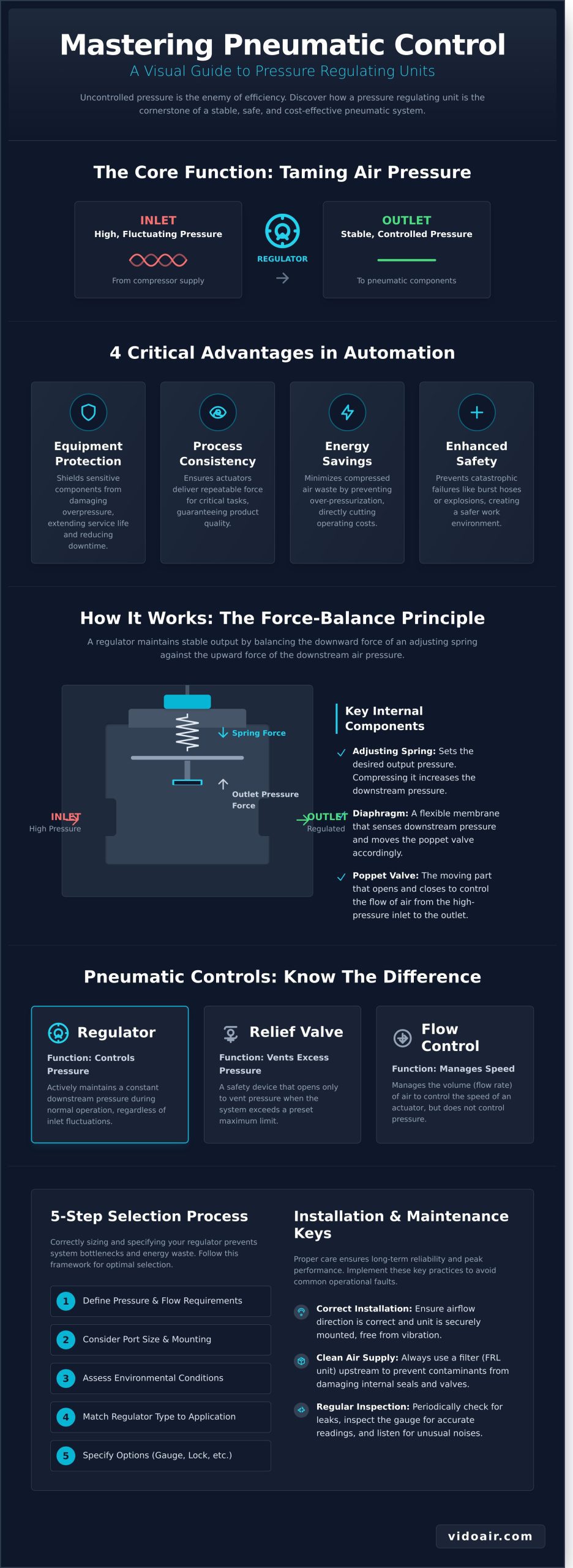

Pressure Regulating Unit: A Complete Guide for Pneumatic Systems

In any high-performance pneumatic system, uncontrolled pressure is the enemy of efficiency and reliability. It manifests as inconsistent performance in automated tasks, damaging pressure spikes that cause premature component failure, and wasted compressed air that inflates operating costs. The key to mastering your system’s output and protecting your investment lies in precise control-a task meticulously managed by a robust pressure regulating unit. This component is not merely an accessory; it is the cornerstone of a stable, safe, and cost-effective pneumatic operation.

This complete guide is engineered to move you from uncertainty to expertise. We will demystify the core functions of pneumatic pressure regulation, explore the different types of regulators, and provide a clear framework for selecting and maintaining the ideal unit for your specific industrial application. By the end, you will be equipped with the technical knowledge to confidently enhance system reliability, reduce air consumption, and ensure your operations achieve peak performance and efficiency.

What Is a Pressure Regulating Unit and Why Is It Critical for Pneumatics?

In high-performance pneumatic systems, precision control is paramount. A pressure regulating unit, often simply called a regulator, is a specialized valve engineered to control the pressure of compressed air downstream. Its primary mission is to deliver a constant, stable output pressure, regardless of fluctuations in the higher inlet pressure coming from a compressor. As the central “R” in a Filter-Regulator-Lubricator (FRL) assembly, it ensures that every component in your automation system receives air at its optimal operating pressure, safeguarding performance and efficiency.

The Core Function: From High Inlet to Stable Outlet Pressure

Think of a pressure regulating unit like a dam controlling the flow of a powerful river. The air compressor is the river, supplying a high volume of air at a variable pressure. The regulator acts as the dam’s gates, reducing this potent, fluctuating force to a steady, predictable stream. It takes the high-pressure inlet air and throttles it down to a precise, user-set level required for pneumatic actuators, valves, and tools to function correctly. The internal mechanism, often involving a spring-loaded diaphragm, constantly adjusts to maintain this balance. For a deeper technical dive into how pressure regulators work, the core principles involve balancing forces within the valve to achieve unwavering downstream stability.

Key Benefits in Industrial Automation

Integrating a robust regulator delivers four critical advantages that directly impact operational success and your bottom line:

• Equipment Protection: It shields sensitive pneumatic components like actuators, valves, and sensors from damaging overpressure, extending their service life and reducing downtime.
• Process Consistency: By supplying a constant pressure, it ensures actuators deliver repeatable force for critical tasks like gripping, clamping, and pressing, which is essential for product quality.
• Energy Savings: Over-pressurization is a leading cause of wasted energy. A regulator ensures the system uses only the necessary amount of compressed air, minimizing energy consumption and operating costs.
• Enhanced Safety: Maintaining correct system pressure prevents catastrophic failures, such as burst air hoses or component explosions, creating a safer working environment for personnel.

Regulators vs. Relief Valves vs. Flow Controls

It is crucial to distinguish a regulator from other common pneumatic controls. While a regulator actively controls downstream pressure during normal operation, a relief valve is a safety device designed to vent excess pressure only when a system exceeds its maximum limit. A flow control valve, on the other hand, does not manage pressure; its function is to manage the volume of air to control the speed of an actuator.

How a Pneumatic Pressure Regulator Works: Inside the Mechanism

At its core, a pneumatic pressure regulator is a meticulously engineered mechanical valve designed to control air pressure in a system. Its operation hinges on a fundamental concept known as the force-balance principle, where the downward force of a spring is precisely countered by the upward force of downstream air pressure. This dynamic equilibrium allows the pressure regulating unit to deliver a constant, stable outlet pressure, regardless of fluctuations in the main supply line or changes in downstream demand.

When an operator turns the adjustment knob, they are compressing or decompressing the main spring. This action sets the desired pressure by pre-loading a specific amount of force. As downstream air is consumed, the outlet pressure drops slightly, allowing the spring’s superior force to push the valve open and replenish the air. This cycle repeats continuously, ensuring robust performance and system efficiency.

The Force-Balance Principle Explained

The operational precision of a regulator is governed by a simple yet effective balance of two opposing forces. The primary control force is exerted by the adjusting spring, which pushes down on a diaphragm to open the poppet valve and allow compressed air to flow through. Opposing this is the force generated by the outlet (downstream) air pressure, which pushes up on the underside of the same diaphragm. When these two forces are perfectly balanced, the poppet valve maintains a stable position, delivering the exact set pressure.

Key Internal Components and Their Roles

Understanding the function of each internal part is critical to appreciating the regulator’s performance. The longevity and precision of these components are directly tied to best practices in regulator installation and maintenance, which prevents contamination and wear.

• Adjusting Spring: This component provides the reference force. Compressing it by turning the adjustment knob increases the desired outlet pressure.
• Diaphragm or Piston: A flexible, pressure-sensitive element that acts as the actuator. It moves in response to changes in downstream pressure, directly controlling the poppet valve.
• Poppet Valve & Seat: This is the core mechanism that modulates airflow. The poppet lifts from its seat to allow air to pass from the inlet to the outlet port and closes against it to restrict flow.

Relieving vs. Non-Relieving Regulators

A crucial distinction exists between relieving and non-relieving designs. A relieving regulator, the standard for most dynamic pneumatic applications, features a built-in vent that allows it to release excess downstream pressure. This is essential for systems with actuators, where pressure spikes can occur. In contrast, a non-relieving pressure regulating unit traps air downstream, making it suitable for static applications or systems using inert gases where venting to the atmosphere is not permissible.

Types of Pressure Regulating Units and Their Applications

Selecting the correct pressure regulator is a critical engineering decision that directly impacts system performance, efficiency, and operational costs. The optimal choice is dictated by the specific demands of the pneumatic circuit, from required flow rate and precision to the operational environment. A high-performance pressure regulating unit must be meticulously matched to its task to deliver unwavering control and reliability.

General-Purpose vs. Precision Regulators

General-purpose regulators are the robust workhorses of industrial pneumatics, engineered for the vast majority of factory floor applications. They provide reliable and cost-effective pressure control for powering pneumatic cylinders, actuators, and air tools. In contrast, precision regulators are designed for applications demanding exceptional sensitivity and repeatability. They are essential for tasks like automated paint spraying, sensitive instrumentation, and fluidic systems, where even minor pressure fluctuations can compromise final product quality.

Pilot-Operated Regulators

For high-flow applications, a pilot-operated regulator offers superior performance. Instead of relying on a large, cumbersome spring to control the main valve, this design uses a small amount of “pilot” air pressure as a signal. This allows a compact unit to accurately control massive volumes of compressed air. They are the ideal solution for regulating a facility’s main air lines or in systems that require remote pressure adjustments from a centralized control panel.

Back-Pressure vs. Pressure-Reducing Regulators

While most regulators are pressure-reducing-meaning they control the downstream (outlet) pressure-some applications require the opposite function. A back-pressure regulator controls the upstream (inlet) pressure. It operates like a highly precise relief valve, opening only when the inlet pressure exceeds a set point to vent excess capacity. This is critical for maintaining a constant pressure in a process vessel or protecting sensitive equipment from over-pressurization.

To further streamline system design, VidoAir also offers integrated components like filter-regulator (F+R) units. This modular approach consolidates two essential functions into a single, compact body, saving valuable space and reducing potential leak points. Selecting the right configuration ensures your pneumatic system is both efficient and robust.

How to Select the Right Pressure Regulating Unit: A 5-Step Guide

Selecting the correct pressure regulating unit is not merely a matter of matching pipe sizes; it is a critical engineering decision that directly impacts system performance, energy consumption, and operational reliability. An undersized regulator will starve downstream components, causing pressure droop and inconsistent performance. Conversely, an oversized unit is less responsive, more expensive, and can lead to wasted energy. This practical guide provides a methodical approach to ensure you specify the ideal component for your application.

Steps 1 & 2: Define Pressure Range and Flow Rate Requirements

The foundation of proper selection lies in two key parameters: pressure and flow. First, determine the precise outlet pressure range (measured in PSI or bar) your application requires for optimal operation. Next, calculate the maximum air consumption or flow rate (in SCFM or L/min) of all downstream components. With these values, you can consult a manufacturer’s flow curve chart. This graph plots outlet pressure against flow rate, allowing you to choose a regulator that maintains stable pressure even at your system’s peak demand.

Steps 3 & 4: Match Port Size and Material Specifications

To prevent flow restrictions, the regulator’s port size (e.g., 1/4″, 1/2″, 1″) must match your system’s existing piping. Mismatched ports create bottlenecks that undermine efficiency. Material selection is dictated by the operating environment and media. While robust aluminum bodies are suitable for most industrial automation, applications in corrosive environments or food processing demand the durability of stainless steel. Similarly, ensure seal compatibility-NBR (Nitrile) is standard for compressed air, while FKM (Viton) is required for systems with aggressive synthetic oils or higher temperatures.

Step 5: Select Essential Features and Accessories

Finally, enhance the functionality and safety of your pneumatic system by selecting the right features for your chosen pressure regulating unit. Key options include:

• Pressure Gauge: Provides immediate visual confirmation of the set downstream pressure, which is essential for setup and troubleshooting.
• Locking Adjustment: A locking knob or mechanism prevents unauthorized or accidental pressure changes, ensuring process consistency and safety.
• Panel Mounting Options: For seamless integration into control cabinets or operator panels, select a regulator with a panel mounting nut or bracket.

For complex applications or systems with unique demands, precise sizing is paramount. Need help with sizing? Contact our technical experts.

Installation, Maintenance, and Troubleshooting Common Issues

A high-performance air preparation system is defined by its long-term reliability and consistent output. Achieving this level of operational excellence begins with precision installation and is sustained through a disciplined maintenance schedule. By following best practices, you can maximize the lifespan of your components and prevent costly downtime.

Best Practices for Installation

Proper installation is the foundation of a trouble-free pneumatic system. Rushing this critical first step can lead to inefficiency and premature component failure. To ensure optimal performance from the start, adhere to these core principles:

• Observe Airflow Direction: Every component is marked with an arrow indicating the correct direction of airflow. Installing a unit backward will prevent it from functioning correctly and may cause damage.
• Protect Internal Components: Always place the pressure regulating unit downstream from a filter. This prevents rust, scale, and other particulate matter from damaging the regulator’s sensitive internal valve seats and seals.
• Ensure Accessibility: Position regulators where the pressure gauge is clearly visible and the adjustment knob is easy to access. This simplifies setup, routine checks, and any necessary fine-tuning during operation.

Basic Maintenance for Extended Lifespan

VidoAir™ components are engineered for durability, but a simple preventative maintenance routine is key to unlocking their full potential. Regularly perform these checks to keep your system running at peak efficiency:

• Inspect for Leaks: Periodically check all fittings, connections, and regulator body seals for audible or detectable air leaks, which waste energy and reduce system performance.
• Maintain Upstream Filtration: A clogged filter restricts airflow and forces the entire system to work harder. Clean or replace the filter element as recommended by the manufacturer.
• Verify Pressure Settings: As part of a scheduled maintenance plan, confirm that the outlet pressure matches the required setpoint to ensure consistent performance for downstream equipment.

Troubleshooting Guide

Even robust systems can encounter issues. This simple guide covers the most common problems associated with a pressure regulating unit, helping you diagnose the root cause quickly.

Starting with meticulously engineered components from VidoAir™ provides a significant advantage. Our pneumatic solutions are designed for robust performance and minimal maintenance, POWERING SUCCESS in your operations. For durable components built to deliver unmatched value, explore our factory-direct offerings.

Powering Your System with Precision Control

In any high-performance pneumatic system, control is paramount. This guide has demonstrated that the pressure regulating unit is the cornerstone of that control, safeguarding equipment, optimizing energy use, and ensuring consistent operational output. From selecting the right type for your application to performing diligent maintenance, every step you take to master this component is an investment in the reliability and efficiency of your entire automation setup. These are not just components; they are the guarantors of performance.

When precision and durability are non-negotiable, VidoAir™ provides the solution. Our air preparation units are meticulously engineered to meet the most demanding industrial standards, delivering robust performance that you can depend on. By choosing VidoAir™, you gain more than a premium component; you gain a strategic advantage with our factory-direct pricing for unmatched value and dedicated technical support to guide your selection and integration. Explore VidoAir’s High-Performance Air Preparation Units to equip your system with the best.

Take the next step in optimizing your pneumatic systems and power your success today.

Frequently Asked Questions

What is the difference between a pressure regulator and a pressure relief valve?

The primary difference is their function within a pneumatic system. A pressure regulator is a control device designed to maintain a constant, precise downstream pressure, regardless of fluctuations in the inlet pressure. In contrast, a pressure relief valve is a safety device. It remains closed during normal operation and only opens to vent excess pressure when the system exceeds a predetermined safety limit, protecting components from damage due to over-pressurization.

What happens if my pressure regulator fails in a pneumatic system?

A regulator failure typically manifests in two ways. If it fails in the open position, unregulated, high-pressure air will flow downstream, potentially damaging sensitive components like actuators and valves or creating unsafe operating conditions. If it fails in the closed position, it will block airflow entirely, causing the downstream application to cease functioning. Both scenarios can lead to significant production downtime and require immediate component replacement to restore system integrity and performance.

How do I correctly adjust a pressure regulating unit?

To correctly set your pressure regulating unit, first turn the adjustment knob counter-clockwise until there is no spring compression. Then, slowly turn the knob clockwise while observing the downstream pressure gauge. Stop turning once the gauge indicates your desired pressure. For optimal precision, always adjust pressure from a lower setting upwards. Once set, many VidoAir™ regulators feature a locking mechanism on the knob to prevent accidental changes and ensure consistent, reliable operation.

Can I use a water pressure regulator for compressed air applications?

No, you must not use a regulator designed for water in a compressed air system. Water regulators are engineered for an incompressible fluid and often use materials, such as EPDM seals, that are incompatible with the oils found in many pneumatic systems. Furthermore, they typically lack a self-relieving function, which is critical for pneumatic safety. Using the wrong type of regulator can lead to premature failure, pressure creep, and significant safety hazards.

What is ‘pressure droop’ and how can I prevent it?

Pressure droop is the natural decrease in a regulator’s output pressure as the flow rate of compressed air through it increases. This can cause inconsistent performance in pneumatic tools and actuators. To prevent droop, ensure your regulator is correctly sized for the application’s peak flow demand. Selecting a regulator with a higher flow capacity (Cv rating) than your system requires will provide a stable, consistent downstream pressure, even during periods of high consumption.

Why is my regulator making a humming or chattering noise?

A humming or chattering noise from your pressure regulating unit often indicates instability, typically caused by incorrect sizing. If the regulator is significantly oversized for a low-flow application, the internal valve can oscillate rapidly between open and closed, creating the noise. This vibration can cause premature wear. The issue can also be caused by system resonance. Verify that your regulator is sized correctly for your system’s flow requirements to ensure smooth, efficient operation.
