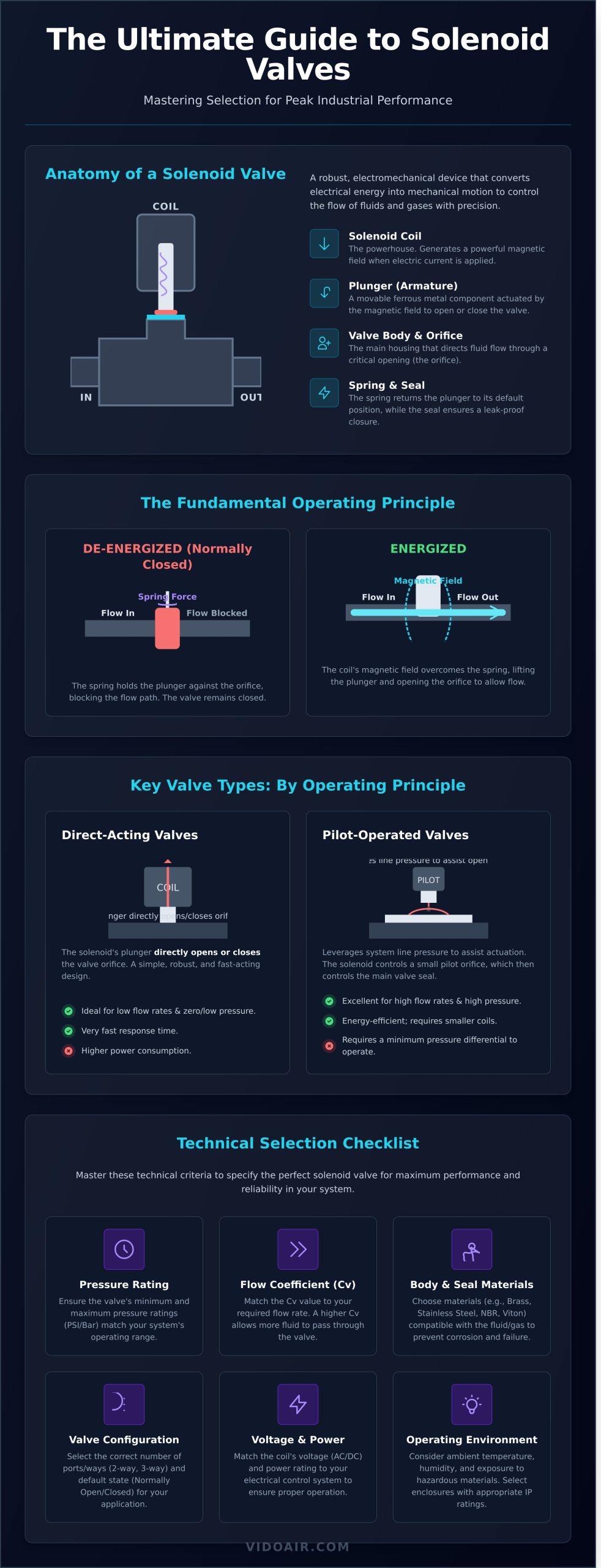

Solenoid Valves: The Complete Industrial Guide

In the world of high-performance industrial automation, precision is not a goal; it is a requirement. A single component failure can trigger a cascade of costly downtime, a risk often linked to the incorrect selection of a critical part like the solenoid valve. Navigating the complexities of port configurations, Cv values, and normally open versus normally closed systems can be a significant challenge, leaving engineers searching for a clear, reliable path to optimal performance. This guide provides that clarity, establishing a direct line between technical specifications and operational excellence.

VidoAir™ is committed to POWERING SUCCESS through meticulously engineered components and expert knowledge. In this complete industrial guide, we demystify the technology that drives modern pneumatic systems. You will learn precisely how solenoid valves function, distinguish between the key types and materials, and master the technical data required for an informed decision. Our goal is to empower you to confidently select the robust, high-performance valve that enhances your system’s efficiency and reliability, sourced directly from a manufacturer dedicated to your success.

What is a Solenoid Valve and How Does It Work?

At its core, a solenoid valve is a robust, electromechanical device engineered for the precise control of fluids and gases in pneumatic and hydraulic systems. Its fundamental purpose is to convert electrical energy into mechanical motion, effectively acting as an automated gatekeeper for flow. Think of it as a high-speed, industrial-grade light switch for fluids; when an electrical signal is sent, the valve opens or closes, instantly starting or stopping the flow. This simple yet powerful on/off capability is the bedrock of modern automation, enabling the speed, precision, and reliability required in high-performance manufacturing and processing applications.

The efficiency of any automated system depends on the quality of its components. A high-performance solenoid valve ensures that every action-from actuating a pneumatic cylinder to dispensing a precise amount of liquid-is executed flawlessly and without delay.

Core Components of a Pneumatic Solenoid Valve

Meticulously engineered for durability and performance, a pneumatic solenoid valve consists of four primary components working in unison:

• Solenoid Coil: The powerhouse of the valve. When an electric current passes through this wire coil, it generates a powerful magnetic field.
• Plunger (or Armature): A movable ferrous metal component positioned inside the coil. It is actuated by the magnetic field to physically open or close the valve’s orifice.
• Valve Body & Orifice: The main housing that directs the flow of compressed air or fluid. The orifice is the critical opening that the plunger blocks or unblocks.
• Seal & Spring: The spring provides the mechanical force to return the plunger to its default position when the coil is de-energized, while the seal ensures a leak-proof closure.

The Fundamental Operating Principle

The operation of a solenoid valve is a direct application of electromagnetism. In its default, de-energized state, the spring holds the plunger firmly against the orifice, keeping the valve either closed (in a “normally closed” configuration) or open (“normally open”). When the system requires a change, an electrical current is applied to the solenoid coil. This instantly creates a strong magnetic field that overcomes the force of the spring, pulling the plunger into a new position. This linear motion either lifts the plunger to open the orifice or pushes it down to close it, thereby controlling the fluid path. The process is reversed the moment the current is cut, allowing the spring to return the plunger to its resting state with immediate effect.

Key Types of Solenoid Valves: Function and Configuration

Selecting a high-performance solenoid valve requires a precise understanding of its core function and configuration. These components are not one-size-fits-all; they are meticulously engineered for specific tasks within a pneumatic system. The primary classifications are based on the valve’s operating principle and its number of flow paths, often described by “ways” (ports) and “positions.” Understanding these core Solenoid Valve Basics is critical for system efficiency and reliability. Additionally, valves are designated as Normally Open (N.O.), allowing flow when de-energized, or Normally Closed (N.C.), which blocks flow until energized.

By Operating Principle: Direct-Acting vs. Pilot-Operated

The method a valve uses to open or close its orifice dictates its suitability for different pressure and flow conditions. This is a fundamental distinction that impacts performance, power consumption, and cost.

• Direct-Acting Valves: The solenoid’s plunger directly opens or closes the valve orifice. This simple, robust design offers a fast response time and is ideal for systems with low flow rates or where pressure is minimal or zero.
• Pilot-Operated Valves: These valves leverage the system’s own line pressure to assist in actuating the valve. A small pilot orifice is controlled by the solenoid, which in turn controls the main valve seal. This design allows for the control of much higher flow rates and pressures with a smaller, more energy-efficient coil.

By Flow Path: 2-Way, 3-Way, and 5-Way Valves

The number of ports, or “ways,” defines how a solenoid valve directs the flow of media. This configuration is directly tied to the complexity of the task it performs, from simple on/off control to actuating sophisticated components.

• 2-Way Valves: The simplest configuration, featuring one inlet and one outlet port. They function as on/off switches in a pipeline, either permitting or blocking flow.
• 3-Way Valves: With three ports, these valves are commonly used to control single-acting cylinders. They can pressurize a device, hold the pressure, and then exhaust it through a third port.
• 5-Way Valves: Essential for controlling double-acting cylinders, these valves have five ports (one pressure inlet, two cylinder ports, and two exhaust ports). This configuration allows them to both extend and retract an actuator, providing complete directional control.

How to Select the Right Solenoid Valve: A Technical Checklist

Selecting the correct solenoid valve is a critical engineering decision that directly impacts system performance, efficiency, and operational longevity. A mismatched valve can lead to system failure, costly downtime, and suboptimal performance. This technical checklist bridges the gap between theory and application, providing a structured, step-by-step process to ensure you specify the ideal component for your needs. Following these guidelines is essential across the vast range of Applications of Solenoid Valves, from precision automation to robust industrial fluid control.

Step 1: Define Your Media and Flow Requirements

The physical properties of the substance flowing through the valve are the primary determining factors for material selection and performance specifications. Meticulously defining these parameters is the foundation of a successful application.

• Media Type: Identify the fluid or gas (e.g., compressed air, water, hydraulic oil, inert gas, corrosive chemical). This dictates the necessary body and seal materials, such as brass for neutral media or stainless steel and FKM/Viton for aggressive substances.
• Pressure Range: Specify both the minimum and maximum operating pressures (PSI or Bar). Pilot-operated valves, for example, require a minimum pressure differential to actuate correctly.
• Flow Rate (Cv): The flow coefficient, or Cv, measures how much fluid the valve can pass. Calculating the required Cv is essential to ensure the valve does not create a bottleneck or is oversized for the application, which guarantees system efficiency.
• Temperature: Note the temperature range for both the media and the ambient environment. Extreme temperatures can affect the performance of the coil and the integrity of the seal materials.

Step 2: Specify Electrical and Environmental Needs

A solenoid valve is an electromechanical device, and its electrical characteristics and resilience to its operating environment are just as critical as its mechanical properties.

• Voltage & Current: Match the valve’s coil voltage (e.g., 24V DC, 120V AC) and power consumption (Watts) to your system’s power supply to ensure reliable activation without overloading circuits.
• Duty Cycle: Determine if the valve will be energized continuously (100% duty cycle) or intermittently. Using a valve not rated for continuous duty in such an application will lead to coil overheating and premature failure.
• Environment: Consider the operating conditions. For applications with exposure to moisture or dust, a valve with a suitable IP (Ingress Protection) rating is necessary. For hazardous areas, explosion-proof enclosures are mandatory.

Step 3: Choose the Correct Configuration and Size

Finally, select the mechanical configuration that aligns with your system’s logic and physical layout. This step ensures the valve functions as intended and integrates seamlessly into your existing infrastructure.

• Function: Choose between Normally Closed (N.C.), which is closed when de-energized, or Normally Open (N.O.), which is open when de-energized. Also, decide between direct-acting (for low-flow or zero-pressure applications) and pilot-operated (for high-flow requirements).
• Port Size & Type: Ensure the valve’s port size and thread type (e.g., NPT, BSP) match your pipes and fittings to prevent leaks and simplify installation.
• Response Time: For high-speed automation and critical processes, the time it takes for the valve to open or close is a key performance metric. Direct-acting valves typically offer a faster response than pilot-operated models.

Once your technical checklist is complete, sourcing the right valve from a trusted supplier is the final step. For those looking for genuine components from a variety of leading brands, suppliers like InstroDirect offer a comprehensive selection to meet diverse industrial needs.

Navigating these technical specifications ensures you procure a high-performance component built for reliability. If you need expert guidance tailored to your unique system, Contact our engineers for help with your specifications.

Common Materials for Valve Bodies and Seals

The performance and longevity of a solenoid valve are fundamentally determined by its construction materials. Selecting the right materials for the valve body and seals is a critical engineering decision that directly impacts durability, media compatibility, and overall cost-efficiency. A meticulously engineered valve with the correct material composition will resist corrosion, prevent leaks, and operate reliably, whereas an improper choice can lead to premature system failure and costly downtime.

Valve Body Materials: Strength and Resistance

The valve body provides the structural integrity and primary defense against the operating environment. Each material offers a distinct balance of strength, weight, and chemical resistance, making it suitable for specific applications.

• Brass: A cost-effective and robust choice for general-purpose applications. It is ideal for neutral media such as compressed air, water, and inert gases, making it a common standard in many pneumatic systems.
• Stainless Steel: Offers superior corrosion and temperature resistance. Its durability makes it essential for controlling aggressive media, high-purity fluids, and for use in food-grade, medical, or chemical processing applications.
• Aluminum: Valued for its lightweight properties and good thermal conductivity. Aluminum is frequently used for the bodies of pneumatic valves in industrial automation, where minimizing component weight is a priority.
• Plastic (e.g., Nylon, PVC): Provides excellent resistance to a specific range of chemicals at a lower cost. These materials are well-suited for applications in water treatment, chemical dosing, and irrigation systems.

Seal Materials: Ensuring a Leak-Proof System

Seals, or elastomers, create the tight shut-off necessary for a valve to function. Their compatibility with the media and operating temperature is paramount for preventing leaks and ensuring system integrity.

• NBR (Buna-N): The standard, all-purpose seal material for neutral fluids, petroleum-based oils, and compressed air systems. It offers excellent abrasion resistance and a cost-effective price point.
• FKM (Viton®): A high-performance material known for its exceptional resistance to high temperatures, fuels, oils, and a wide array of aggressive chemicals.
• EPDM: The preferred choice for applications involving water, steam, and outdoor exposure due to its excellent resistance to weathering and ozone. It is not suitable for use with petroleum-based fluids.
• PTFE (Teflon®): Delivers nearly universal chemical resistance and operates across an extremely wide temperature range. Its low-friction properties also contribute to a long service life.

Matching the body and seal materials to your specific application requirements is the cornerstone of a reliable and efficient fluid control system. For assistance in selecting the ideal solenoid valve for your operational needs, explore our comprehensive catalog at vidoair.com.

Industrial Applications and Use Cases for Solenoid Valves

From high-speed production lines to complex fluid management systems, the solenoid valve is a foundational component of modern industrial automation. Its ability to reliably convert electrical signals into precise mechanical action makes it an indispensable tool for controlling the flow of air, gasses, and liquids. This versatility allows a single, robust component to power a vast range of applications, driving efficiency and enabling sophisticated process control across countless industries.

Manufacturing and Automation

In the demanding environment of manufacturing, pneumatic solenoid valves are critical for powering automated systems with speed and precision. They are the high-performance workhorses behind the scenes, seamlessly integrating into complex machinery to execute key functions. Common applications include:

• Actuator and Cylinder Control: Directing compressed air to power pneumatic actuators and cylinders on assembly lines for clamping, pressing, and positioning tasks.
• Robotic Tooling: Operating robotic grippers and other end-of-arm tooling with rapid, repeatable accuracy for pick-and-place operations.
• Material Handling: Actuating pneumatic gates to accurately divert products and components on high-speed conveyor systems, ensuring proper sorting and routing.

Process Control and Fluid Dispensing

Beyond pneumatics, solenoid valves provide meticulous control over liquids and gasses, which is essential for industries where consistency is paramount. The choice of valve material, such as stainless steel for sanitary applications or robust brass for general use, is tailored to the specific media being controlled. This precision is vital for:

• Food & Beverage: Automating the precise mixing and dispensing of ingredients, ensuring consistent product quality and adherence to recipes.
• Water Management: Controlling water flow in large-scale commercial irrigation systems, vehicle washes, and municipal water features for efficient operation.
• Chemical Dosing: Enabling automated and highly accurate dosing of chemicals in water treatment plants and other industrial processes.

Specialized Applications

The adaptability of the solenoid valve extends to specialized and demanding environments. In vacuum applications, they are used to control suction for material handling, packaging, and thermoforming. In facilities concerned with air quality, they provide reliable control for pulse-jet valves in dust collection systems, helping maintain a safe and clean workspace.

Understanding these diverse applications is key to selecting the right components for optimal performance and reliability. From standard configurations to custom-engineered solutions, the right valve is essential for operational excellence. Power your success with VidoAir’s factory-direct pneumatic solutions.

Powering Your Operations with the Right Solenoid Valve

From their fundamental electromechanical principles to their critical role across countless industries, solenoid valves are the cornerstone of modern automated fluid control. Understanding the key differences in function, configuration, and material composition is paramount to selecting a component that delivers optimal performance and reliability for your specific application.

When precision and value are non-negotiable, choosing the right supplier is as critical as choosing the right solenoid valve. At VidoAir™, we are committed to powering your success by providing premium, meticulously engineered components with factory-direct pricing for unmatched value. Our dedicated technical support from pneumatic experts is always available to ensure you have the guidance to select the perfect solution for your system’s demands.

Ready to enhance your operations with superior flow control? Explore VidoAir’s High-Performance Solenoid Valves today and equip your systems for maximum efficiency and success.

Frequently Asked Questions About Solenoid Valves

What is the difference between a Normally Open (N.O.) and Normally Closed (N.C.) solenoid valve?

A Normally Closed (N.C.) valve is the most common configuration; it remains closed, blocking media flow, until the coil is energized. Conversely, a Normally Open (N.O.) valve allows media to pass through when de-energized and closes only when electrical power is applied. The choice depends on the application’s fail-safe requirement. For example, a safety system might use an N.O. valve to vent pressure if power is lost, while a fluid dispensing system would use an N.C. valve.

How long do industrial solenoid valves typically last?

The operational lifespan of an industrial solenoid valve depends on cycle frequency, media type, operating pressure, and material quality. A robust, well-maintained valve in a clean air application can achieve several million cycles. However, valves handling aggressive chemicals or abrasive media may have a shorter lifespan. Regular inspection and using a valve specified for the application are critical for maximizing service life and ensuring system reliability and peak performance.

Can a standard solenoid valve be used to control or throttle flow rate?

Standard solenoid valves are designed for binary, on/off control and are not suitable for throttling or modulating flow. Attempting to do so by altering the voltage can cause chattering, coil overheating, and premature failure. For precise flow rate control, a proportional solenoid valve is required. These specialized valves adjust the orifice opening in proportion to the input electrical signal, enabling precise and repeatable control over the flow of liquids or gases in an automated system.

What happens if I use the wrong voltage on a solenoid coil?

Applying an incorrect voltage has immediate, detrimental effects. Supplying a voltage that is too high (overvoltage) causes the coil to draw excessive current, leading to rapid overheating, insulation breakdown, and permanent burnout. Conversely, a voltage that is too low (undervoltage) will not generate a strong enough magnetic field to actuate the valve plunger. This results in a failure to open or close reliably. Always match the power supply exactly to the coil’s specifications.

What does the Cv rating of a valve mean and why is it important?

The Cv rating, or Flow Coefficient, is a critical performance metric that quantifies a valve’s capacity to allow fluid to flow through it. It represents the volume of water in U.S. Gallons Per Minute (GPM) that will pass through a valve with a pressure drop of 1 PSI. A higher Cv value indicates a greater flow rate. This rating is essential for accurately sizing a valve to ensure it meets the system’s flow requirements without creating excessive pressure drops or inefficiencies.

How do I troubleshoot a solenoid valve that is not opening or closing?

When a solenoid valve fails, begin by verifying the electrical supply. Confirm the correct voltage is reaching the coil and test for continuity with a multimeter to check for burnout. If the coil is functional, inspect for mechanical issues. Debris lodged in the orifice can prevent the plunger from moving, or incorrect differential pressure (for pilot-operated valves) can cause failure. Also, ensure internal components like the diaphragm or seals are not worn, swollen, or damaged.
