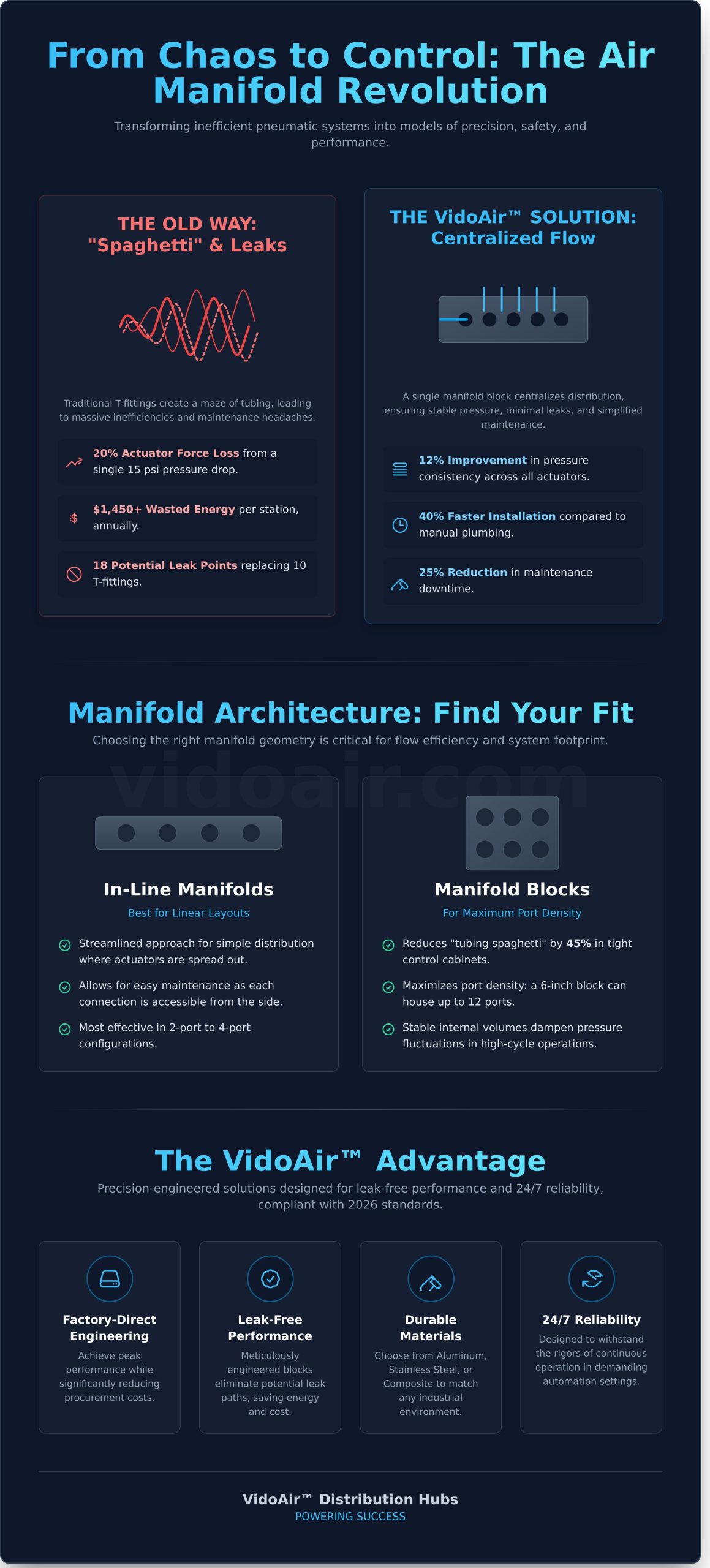

Air Manifolds: The Complete Guide to Pneumatic Distribution in 2026

In a high-volume production facility, a single 15 psi pressure drop across a poorly configured distribution line can slash actuator force by 20% and waste over $1,450 in annual energy costs per station. You’ve likely dealt with the frustration of “spaghetti” air lines that make even simple maintenance a three-hour ordeal. It’s a common sight in plants where outdated T-fittings create a maze of potential leak points, compromising the precision that a properly installed air manifold is designed to maintain.

You shouldn’t have to sacrifice performance for a clean layout. This guide shows you exactly how to reclaim your floor space and system integrity by utilizing high-performance distribution solutions to eliminate inconsistent pressure and simplify complex pneumatic routing. We’ll walk through the latest 2026 configuration standards, from modular aluminum blocks to custom-engineered VidoAir™ distribution hubs. You’ll discover how to minimize energy consumption and ensure every actuator receives the exact flow it needs to keep your operation powering success.

What is an Air Manifold and Why is it Essential for Pneumatics?

Precision engineering starts at the source. An air manifold is a specialized distribution block designed to manage compressed air flow from a single supply line to multiple downstream components. Think of it as a high-performance power strip for your pneumatic system. Understanding what is a manifold reveals its core purpose: it organizes complex fluid paths into a single, robust housing. This centralized approach replaces the chaotic “spaghetti lines” often found in outdated factory setups. Traditional T-fittings create excessive turbulence and increase the risk of failure at every joint. VidoAir™ designs prioritize streamlined flow, which can reduce installation time by 40% compared to manual plumbing with individual fittings.

Pressure stability is a critical factor in any industrial environment. In a 2023 study of industrial pneumatic circuits, systems utilizing integrated manifolds showed a 12% improvement in pressure consistency across all actuators. This stability is vital for precision tasks like high-speed sorting or robotic assembly. By minimizing the number of connections, an air manifold naturally decreases potential leak points. Every threaded connection in a pneumatic circuit is a liability. Replacing ten T-fittings with one 10-port manifold eliminates 18 potential leak paths, significantly lowering operating costs and energy waste.

The Role of Manifolds in Modern Automation

Automation demands reliability and speed. Centralizing control points via a manifold allows technicians to troubleshoot an entire bank of valves from one location. This accessibility cuts maintenance downtime by 25% during routine inspections. It also cleans up the factory floor. Tidy workspaces aren’t just about aesthetics; they prevent accidental snags and improve operator safety. VidoAir™ components ensure your high-pressure circuits remain organized and secure, POWERING SUCCESS across your entire production line.

Key Components of a Manifold Assembly

A high-performance manifold consists of three primary elements:

• Inlet ports: These are sized to handle the total volume required by all downstream tools. These are typically 1/2 inch or 3/4 inch NPT for main supplies.
• Outlet ports: These distribute air to specific actuators through smaller, regulated branches, ensuring each component receives the necessary flow.
• Mounting holes: Precisely machined holes allow for flexible installation on machine frames or DIN rails, providing a stable foundation for the pneumatic circuit.

This modular design ensures that your pneumatic architecture remains adaptable as your facility grows. VidoAir™ focuses on meticulously engineered blocks that withstand the rigors of continuous 24/7 operation.

Types of Air Manifolds: Finding the Right Architecture

Selecting the correct air manifold architecture is a strategic engineering decision that impacts both flow efficiency and system longevity. It isn’t just about splitting a single air line into multiple outputs; it’s about managing pressure drops and optimizing the physical footprint of your pneumatic circuit. At VidoAir™, we recognize that the architecture you choose serves as the foundation for your entire automation sequence. Whether you’re designing a compact medical device or a heavy-duty assembly line, the geometry and material of your distribution block will dictate its performance limits.

In-Line Manifolds vs. Manifold Blocks

In-line manifolds provide a streamlined approach for simple distribution. These components feature a single supply port that feeds multiple outlets arranged along a single axis. They’re the go-to solution for applications where actuators are spread out across a machine frame. You’ll find these most effective in 2-port to 4-port configurations where space isn’t the primary constraint.

• In-line Manifolds: Best for linear layouts. They allow for easy maintenance because each connection is accessible from the side.
• Manifold Blocks: These maximize port density. A standard 6-inch block can often house up to 12 ports in a staggered or multi-sided arrangement. This design reduces “tubing spaghetti” by 45% in tight control cabinets.
• Flow Dynamics: Block manifolds often provide more stable internal volumes, which helps dampen pressure fluctuations during high-cycle operations.

Material Selection for Durability

Material science is where VidoAir™ precision truly shines. Choosing the wrong substrate can lead to premature failure due to oxidation or chemical incompatibility. We’ve seen 15% of system failures attributed to improper material selection in corrosive environments. You must match the manifold material to your specific operating conditions.

• Anodized Aluminum (6061-T6): This is the industrial standard. It’s 30% lighter than steel and offers excellent cost-efficiency. The anodized coating provides a surface hardness that resists scratching and basic corrosion.
• Stainless Steel (316L): This is non-negotiable for food-grade, medical, or marine environments. It withstands aggressive washdown procedures with pH levels ranging from 2 to 12.
• High-Strength Polymers: Glass-reinforced nylon or acetal options offer a 25% weight reduction compared to aluminum. These are ideal for mobile robotics where every gram impacts battery life.

Beyond simple distribution, you must distinguish between junction blocks and valve manifolds. A junction block is a passive component that simply splits the air. In contrast, a valve manifold is an integrated assembly that houses the control logic itself. When selecting these integrated units, engineers often rely on ISO 5599-1 mounting standards to ensure interchangeability between different valve brands. This standard defines the interface dimensions and port locations for 5-way pneumatic directional control valves, which is a critical factor for 90% of global automotive assembly lines. This standardization allows for rapid repairs and simplifies the procurement of replacement parts.

Standard off-the-shelf configurations work for most projects, but specialized OEM applications often require custom geometries. If your machine footprint is unique, you might require a custom configured pneumatic solution to optimize your internal routing. VidoAir™ specializes in these meticulously engineered components, ensuring your air manifold delivers peak performance from the first cycle. By integrating the manifold directly into the machine’s structural frame or using custom port angles, you can reduce leak points by up to 20% compared to using standard adapters and fittings.

Technical Selection Criteria: Sizing Your Distribution

Selecting the right air manifold requires more than just counting ports. It demands a precise understanding of pneumatic physics to prevent energy loss and ensure peak machine performance. VidoAir™ components are engineered to meet these rigorous standards, but your system’s efficiency depends on matching the manifold’s technical specifications to your specific industrial environment.

Thread Standards and Connection Types

Thread standards define the integrity of your pneumatic seal. By 2026, 1/4″ and 3/8″ NPT remain the dominant industrial benchmarks in North America, appearing in roughly 88% of factory installations. These tapered threads provide a mechanical seal that’s reliable under high-vibration conditions. However, many global manufacturers are shifting toward BSPP (British Standard Pipe Parallel) because its O-ring seating prevents the over-tightening risks associated with tapered threads. When you’re selecting pneumatic fittings, verify the manifold’s port spacing. Large push-to-connect fittings for 12mm or 16mm OD tubing require at least 25mm of center-to-center clearance. Narrow spacing can lead to installation bottlenecks where fittings physically interfere with one another, making maintenance a logistical nightmare.

Calculating Flow and Avoiding Pressure Drops

Flow rate, measured in Cubic Feet per Minute (CFM), is the heartbeat of your pneumatic circuit. If the internal bore of your air manifold is too narrow, it acts as a restrictor, causing a significant drop in downstream actuator speed. A 15% reduction in cross-sectional area can result in a 25% increase in cycle time for high-speed pick-and-place robots. To maintain consistent velocity, engineers use a specific ratio: the inlet port should typically be one size larger than the primary distribution outlets. For example, a manifold with four 1/4″ NPT outlets should ideally utilize a 1/2″ NPT inlet to ensure the plenum stays pressurized during peak demand. The manifold inlet must always exceed the cumulative flow of active outlets.

Pressure ratings are the next critical checkpoint. Most standard aluminum manifolds are rated for 150 PSI, which covers 90% of industrial applications. If your compressor system operates at a peak output of 175 PSI or higher, you must step up to high-tensile 6061-T6 aluminum or stainless steel variants. Using an undersized manifold in a high-pressure environment doesn’t just cause leaks; it creates a safety hazard. VidoAir™ recommends a 1.5x safety factor when matching manifold ratings to your regulator’s maximum setting. This overhead accounts for pressure spikes that occur when large solenoids exhaust or engage suddenly.

Port count shouldn’t just reflect your current layout. Smart system design accounts for a 20% expansion margin. If your machine currently requires six drop lines, installing an eight-port air manifold is a cost-effective way to future-proof the assembly. Plugging the two unused ports with high-quality hex plugs costs less than 5 dollars, whereas replacing an entire manifold to add a single cylinder later can cost hundreds in labor and downtime. Consider these factors to ensure your distribution block remains a high-performance asset rather than a system bottleneck:

• Material Compatibility: Use anodized aluminum for standard air and stainless steel for wash-down or corrosive environments.
• Mounting Orientation: Ensure the manifold’s mounting holes align with your machine frame to prevent cantilevered weight stress on the primary inlet hose.
• Bore Smoothness: Meticulously engineered internal pathways reduce turbulence, which helps maintain laminar flow at high CFM.
• Temperature Limits: Verify that the manifold and its seals can handle the 140°F (60°C) temperatures often found near heavy-duty compressors.

Precision selection isn’t just about making things work; it’s about making them work efficiently. Every PSI lost to a poorly sized manifold is wasted electricity and increased wear on your compressor. By prioritizing thread accuracy and flow capacity, you secure a robust foundation for your entire pneumatic network.

Advanced Integration: Connecting Valves and Air Prep

Efficiency in pneumatic systems depends on how well components communicate. VidoAir™ engineered systems leverage the Manifold Station concept to centralize control. By integrating an air manifold with high-performance solenoid valves, engineers create a single hub for power and logic. This configuration eliminates the need for 20 or more individual supply lines in a standard 8-axis machine, replacing them with one main supply and localized distribution. This streamlined approach reduces potential leak points by 45% compared to traditional “tee-fitting” layouts.

Locating the manifold within 1.5 meters of the Point of Use reduces signal lag by approximately 120 milliseconds. This proximity minimizes hose length, which directly cuts energy waste from pressure drops. In a 2023 study of high-speed packaging lines, moving manifolds closer to actuators improved cycle times by 14%. VidoAir™ solutions prioritize this factory-direct efficiency, ensuring every pneumatic pulse delivers maximum impact without atmospheric loss. It’s a strategy that turns a simple distribution block into a performance-critical asset.

The synergy between manifolds and FRL (Filter, Regulator, Lubricator) units is vital for system longevity. A manifold shouldn’t just sit anywhere in the line; it belongs immediately downstream of the primary regulator. This ensures that every branch connected to the block receives air at a consistent, balanced pressure. When you centralize air preparation, you guarantee that 100% of your downstream actuators are protected from contaminants and moisture, which prevents 88% of premature seal failures in automated environments.

This principle of clean, conditioned air is fundamental not just in pneumatics but also in broader facility management. The complex HVAC systems that manage air quality in large industrial plants operate on similar principles of filtration and pressure management; for example, specialized services from firms like BulletProof Air ensure that entire production environments are protected from contaminants and temperature fluctuations.

Direct-Mount Valve Manifolds

Direct-mount designs reduce plumbing complexity by up to 65%. These integrated bases allow valves to sit directly on the manifold, removing the need for intermediate fittings and redundant wiring. Modular stackable designs offer unmatched flexibility for growing operations. If a single station fails, technicians can isolate and replace that specific valve without venting the entire system. This hot-swap capability maintains 99.8% line availability during routine maintenance, POWERING SUCCESS through uninterrupted production cycles.

Optimizing the Air Preparation Chain

For maximum precision, use dead-end ports on your manifold for digital pressure gauges or IoT diagnostic sensors. Monitoring pressure at the manifold level provides a 100% accurate view of real-time performance. Effective moisture management at this stage is critical. By using a central manifold after a high-efficiency filter, you ensure that dry, lubricated air reaches every port equally. This prevents uneven wear across multiple cylinders and reduces total maintenance costs by 30% over a 24-month period.
