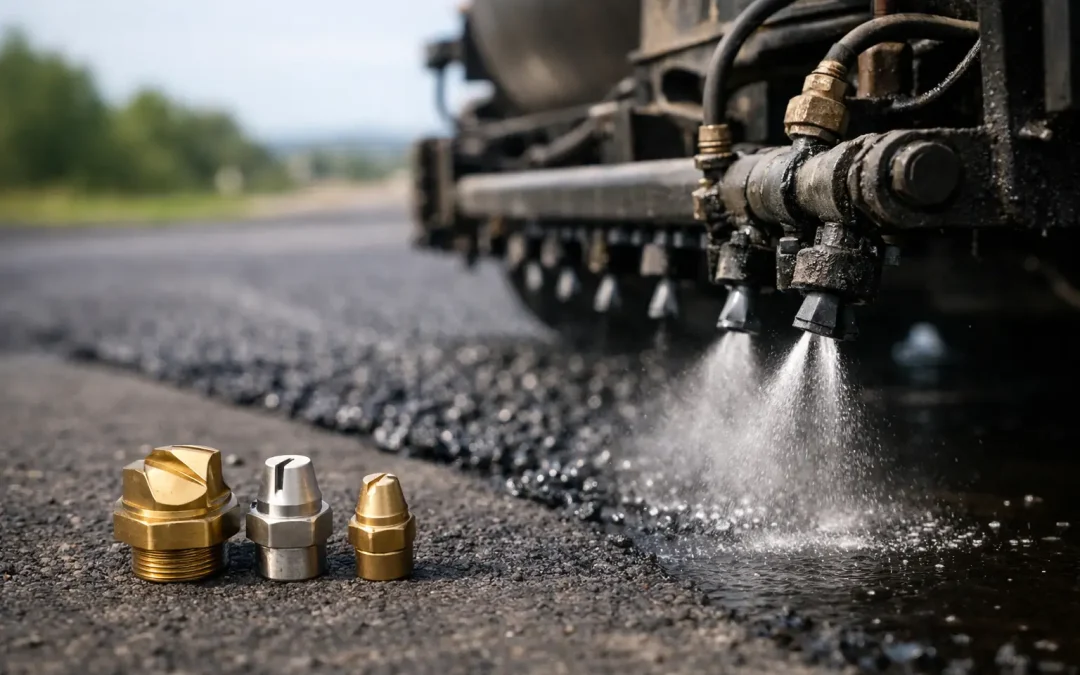

A streaky tack coat, bare strip between spray passes, or excessive binder usage rarely starts with the pump alone. In many cases, asphalt sprayer nozzle selection is the root cause. A nozzle that is nominally compatible with the machine can still produce poor field results when its fan angle, flow capacity, operating pressure, or material rating does not match the job.
For paving contractors, road-maintenance crews, and OEMs building spray systems, the nozzle is a precision metering component. It determines how emulsions, asphalt cement, cutbacks, and other liquid binders reach the surface. Selecting it correctly protects material cost, bond quality, coverage consistency, and production speed.
Start With the Required Application Rate
Nozzle selection begins with the specified application rate, not the thread size or the nozzle already installed on the bar. Determine how much material must be applied per unit area, typically expressed in gallons per square yard or gallons per square foot. Then account for the effective spray width and planned travel speed.
The system must deliver enough total flow to maintain that rate at production speed. A useful working relationship is:
Total flow = application rate × treated width × travel speed
Units must be converted carefully. A mismatch between miles per hour, feet per minute, and square yards can produce a substantial error before a sprayer reaches the work zone. Once total flow is known, divide it by the number of active nozzles. This gives the target flow per nozzle.
Do not size a nozzle at the absolute top of its published capacity. Doing so leaves little adjustment range when the crew changes speed, the material temperature shifts, or a different application rate is required. A nozzle operating near the middle of its intended pressure range usually provides better control and more stable atomization than one forced to its limit.
Match Fan Angle to Spray-Bar Geometry
A spray bar delivers uniform coverage through controlled overlap. Fan angle, nozzle height, nozzle spacing, and nozzle orientation work together. Changing one without verifying the others is a common reason for bands and light spots.
Flat-fan spray nozzles are widely used because their tapered spray patterns are designed to overlap. The pattern is heavier through the center and lighter near the edges, so adjacent fans must intersect at the correct height to create a uniform combined application. A wider fan angle can cover more width at a given bar height, but it may also be more sensitive to wind and require closer attention to overlap geometry.
Nozzle spacing is often fixed by the spray bar. In that case, select a fan angle that achieves the required overlap at a practical operating height. Raising the bar can increase coverage width, but excessive height increases wind drift, reduces placement accuracy, and makes the pattern more vulnerable to vehicle bounce. Lowering it too far can leave sharp bands between nozzles.
Use the Correct Nozzle Orientation
Flat-fan nozzles should generally be installed at a slight angle to the spray bar rather than aimed directly perpendicular to it. This prevents adjacent fan patterns from colliding in the air and producing uneven distribution. The exact orientation depends on the bar design and nozzle manufacturer guidance, but consistency across every nozzle matters as much as the selected angle.
A single rotated nozzle can create a visible defect. During setup, inspect the entire bar from a safe position with water or an approved test fluid where practical. Verify that every nozzle points the same way and that no body, cap, or filter is obstructing the fan.
Select Capacity at the Pressure You Can Maintain
Nozzle flow increases as pressure rises, but not in a linear relationship. Raising pressure can help crews increase application rate without changing nozzle tips, yet it also changes droplet formation and may push the system outside its best operating window.
For asphalt materials, pressure must be considered alongside viscosity and temperature. An emulsion at the correct application temperature may spray evenly at a moderate pressure, while a cooler, more viscous material can require different equipment settings or a different nozzle capacity. Simply increasing pressure to force cold material through an undersized tip can lead to poor pattern development, unstable flow, and avoidable wear.
A properly configured sprayer has adequate pump capacity and recirculation control to hold pressure across the full bar. If pressure drops noticeably when multiple sections are opened, nozzle selection may appear to be the problem when the actual limitation is pump output, plumbing restriction, or a bypass setting.
For field control, establish a target pressure range for each material and application rate. Then choose a nozzle capacity that reaches the desired flow inside that range. This gives operators usable adjustment room without relying on pressure extremes.
Consider Material Compatibility Before Flow Charts
Flow charts are necessary, but they are not enough. Asphalt cement, polymer-modified binders, emulsions, rejuvenators, and cutback products vary widely in temperature, solids content, viscosity, and cleaning requirements. The nozzle tip, cap, gasket, and internal seals must tolerate both the applied material and the flushing procedure used at the end of the shift.
Material compatibility affects reliability in several ways. A seal that swells or hardens can cause leakage or inconsistent flow. An incorrect tip material can wear prematurely, changing the orifice size and increasing output. A nozzle design with narrow internal passages may be more prone to plugging when the material has debris, skinning, or temperature-related viscosity changes.
For demanding asphalt service, prioritize nozzle assemblies designed for heated material and frequent cleaning. Stainless steel components can be advantageous where corrosion resistance and long-term durability are required, but the correct choice still depends on the full fluid path and operating environment. Confirm the material rating for the specific product being sprayed instead of assuming every industrial spray tip is suitable for asphalt.
Treat Strainers and Nozzles as One System
A correctly sized nozzle cannot compensate for poor filtration. Plugged strainers restrict flow, create pressure differences across the bar, and can make operators chase a false nozzle problem. Conversely, a filter that is too fine for the material can become a restriction point during normal operation.
Choose strainer mesh based on the nozzle orifice size and the cleanliness of the material. The goal is to stop contaminants that could damage or plug the tip without creating unnecessary pressure loss. Maintain a cleaning schedule that reflects actual material behavior, especially with emulsions or products that can leave deposits after shutdown.
Use a disciplined inspection routine. Check for partial plugging, damaged screens, hardened residue, and worn tips. A nozzle can look clean while delivering an altered pattern. Measuring output from each nozzle at a controlled pressure is the most reliable way to identify deviation.
Diagnose Coverage Problems Before Replacing Every Tip
When application uniformity falls off, replacing the full nozzle set may be appropriate, but it should not be the first assumption. Start by confirming material temperature, pump pressure, travel speed, and spray-bar height. Then inspect nozzle orientation and compare output across the bar.
Several symptoms point to specific causes. A repeating heavy-light pattern often suggests incorrect overlap, nozzle height, or fan alignment. Random light spots may indicate partial plugging or air entering the fluid system. Uniformly high application rates can indicate worn or oversized nozzles, incorrect calibration, or travel speed lower than assumed. A pattern that worsens as the day progresses may be tied to temperature loss or filter loading.
Nozzles wear gradually, which makes output drift easy to miss. The crew may compensate by reducing pressure or increasing speed, but those corrections can introduce new coverage issues. Establish a replacement threshold based on measured flow deviation from a new reference tip. Replacing a matched set is often preferable to mixing old and new nozzles with different real-world outputs.
Build a Practical Asphalt Sprayer Nozzle Selection Standard
For fleets and OEM spray systems, document approved nozzle configurations by material type, application rate, bar spacing, and operating pressure. This prevents field substitutions that fit mechanically but do not meet performance requirements. Keep the record with the machine calibration data so operators can verify settings before mobilization.
A strong standard also includes spare tips, caps, seals, and strainers matched to each bar configuration. That reduces downtime when a nozzle is damaged during cleaning or a tip begins to plug on a time-sensitive job. Factory-direct component sourcing can simplify this process when standard replacement hardware and configured spray-system parts must be available through one technical partner.
The best nozzle choice is not simply the highest-flow or widest-angle option. It is the one that produces the specified rate, stable overlap, and repeatable pattern with the actual material, machine pressure, and field conditions. Validate that combination before the first pass, and the spray bar becomes a controlled production tool rather than a source of costly rework.
